EDL Equipment Casters 3Inch PA E-coated Casters With Brake 500Kg RoadM433-16S

Name: EDL Equipment Casters 3Inch PA E-coated Casters With Brake 500Kg RoadM433-16S
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M433-16S
Availability: InStock

Brand Name:	EDL
Model Number:	M433-16S
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

3inch(75mm)

Tread Material:

Mounting Type:

Threaded Swivel/Brake

Dynamic Load:

500kg

Mounting Height:

100mm

Frame Material:

Cold-Rolled Plate

Threaded Size:

M16*25

Bracket Thickness:

3mm

Surface Treatment:

Electrophoretic

Bracket Width:

46mm

Wheel Width:

40mm

Bearing:

Double Ball Bearings

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

3 inch PA caster with brake

E-coated equipment casters 500kg

heavy-duty road casters with warranty

Product Description

EDL Equipment Casters 3Inch PA E-coated Casters With Brake 500Kg RoadM433-16S

The EDL Equipment Caster M433-16S is a 3-inch threaded-stem industrial caster designed to deliver exceptional strength, stability, and wear resistance for heavy-duty equipment. Available in swivel and brake versions, it offers smooth maneuverability and firm locking control, making it a dependable choice for industrial machinery, production systems, and automation setups.

Key Features

Durable PA (nylon) wheel with high hardness (67D) for abrasion resistance
Supports up to 500 kg load capacity
E-coated steel bracket for corrosion and oxidation protection
Operational temperature range: -20°C to 100°C

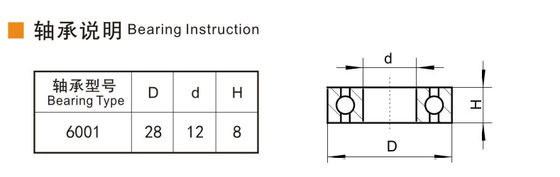

Double ball bearing (6001) for smooth movement
Threaded stem design for secure installation
Available with brake for stable positioning

Technical Specifications

Wheel Item No.	Size	Wheel Diameter	Wheel Width	Bracket Width	Load Capacity	Tread	Bearing	Temperature Range	Hardness
M433-16	3"	75mm	40mm	46mm	500Kg	PA	Double ball bearing 6001	-20℃～100℃	67D

Product Images

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit?

A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?

A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?

A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?

A: Yes, sample is fine at any time, negotiable.
