EDL Equipment Casters 2.5Inch PA Wheels With E-coated bracket Brake 450Kg Road M4325-16S

Name: EDL Equipment Casters 2.5Inch PA Wheels With E-coated bracket Brake 450Kg Road M4325-16S
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M4325-16S
Availability: InStock

Brand Name:	EDL
Model Number:	M4325-16S
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

2.5inch(65mm)

Tread Material:

Mounting Type:

Threaded Swivel/Brake

Dynamic Load:

450kg

Mounting Height:

90mm

Frame Material:

Cold-Rolled Plate

Threaded Size:

M16*25

Bracket Thickness:

3mm

Surface Treatment:

Electrophoretic

Bracket Width:

46mm

Wheel Width:

40mm

Bearing:

Double Ball Bearings

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

2.5 inch PA caster wheels with brake

heavy duty equipment casters 450kg

E-coated bracket caster wheels M4325-16S

Product Description

EDL Equipment Casters 2.5Inch PA Wheels With E-coated bracket Brake 450Kg Road M4325-16S

The EDL Equipment Caster M4325-16S is a 2.5-inch threaded-stem caster engineered for heavy-duty and precision equipment where compact size and strong load capacity are essential. Available in swivel and brake types, it provides reliable mobility and secure positioning for a wide range of industrial and mechanical applications.

Key Features

High-strength PA (nylon) wheel with excellent hardness (67D) and impact resistance
Low rolling friction for smooth movement and outstanding wear resistance
Supports up to 450 kg per caster for heavy-duty applications
E-coated steel bracket prevents corrosion and surface damage
Operating temperature range: -20°C to 100°C

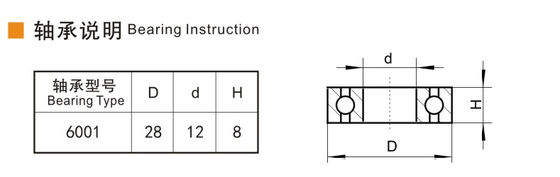

Double ball bearing (6001) for smooth operation
Ideal for industrial equipment, machinery bases, and automated systems

Technical Specifications

Wheel Item No.	Size	Wheel Diameter	Wheel Width	Bracket Width	Load Capacity	Core	Tread	Bearing	Applicable Temperature	Hardness
M4325-16	2.5"	65mm	40mm	46mm	450Kg	/	PA	Double ball bearing 6001	-20℃～100℃	67D

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit?

A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?

A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?

A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?

A: Yes, sample is fine at any time, negotiable.
