EDL Equipment Casters 2.5Inch E-coated Threaded Aluminum Casters with Brake 450Kg Road M4325-86AS

Name: EDL Equipment Casters 2.5Inch E-coated Threaded Aluminum Casters with Brake 450Kg Road M4325-86AS
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M4325-86AS
Availability: InStock

Brand Name:	EDL
Model Number:	M4325-86AS
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

2.5inch(65mm)

Tread Material:

Aluminum

Mounting Type:

Threaded Swivel/Brake

Dynamic Load:

450kg

Mounting Height:

90mm

Frame Material:

Cold-Rolled Plate

Threaded Size:

M16*25

Bracket Thickness:

3mm

Surface Treatment:

Electrophoretic

Bracket Width:

46mm

Wheel Width:

40mm

Bearing:

Double Ball Bearings

Tread Color:

Brown

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

2.5 inch threaded aluminum casters

heavy duty equipment casters with brake

E-coated casters with 450kg capacity

Product Description

EDL Equipment Casters 2.5Inch E-coated Threaded Aluminum Casters with Brake 450Kg Road M4325-86AS

The EDL Equipment Caster M4325-86AS is a 2.5-inch threaded-stem caster specially crafted for compact industrial and mechanical equipment that demands both high performance and space efficiency. Offered in swivel and brake configurations, it provides flexible movement and precise control across a variety of heavy-duty applications.

Key Features

Constructed with TPU (thermoplastic polyurethane) tread and reinforced aluminum core
Ensures smooth, quiet rolling with excellent strength and wear resistance
TPU material provides low noise, high elasticity, and outstanding floor protection
Aluminum hub contributes to stability without unnecessary weight
Each unit supports up to 450 kg capacity
E-coated steel bracket offers corrosion resistance and durable finish
Operating temperature range: -30°C to 80°C
92A hardness rating for optimal traction and rolling comfort

Technical Specifications

Wheel Item No.	Size	Wheel Diameter	Wheel Width	Bracket Width	Load Capacity	Core	Tread	Bearing	Applicable Temperature	Hardness

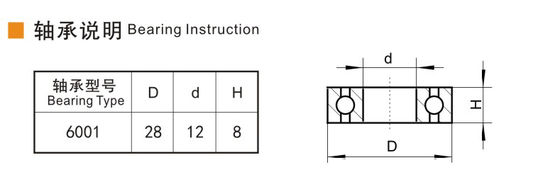

M4325-86A	2.5"	65mm	40mm	46mm	450Kg	Aluminum	TPU	Double ball bearing 6001	-30℃～80℃	92A

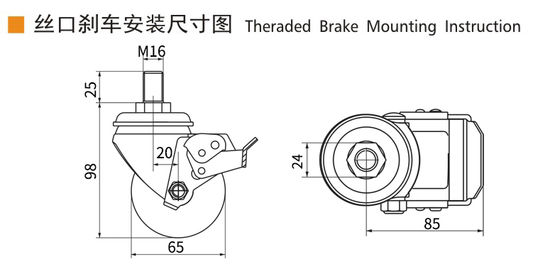

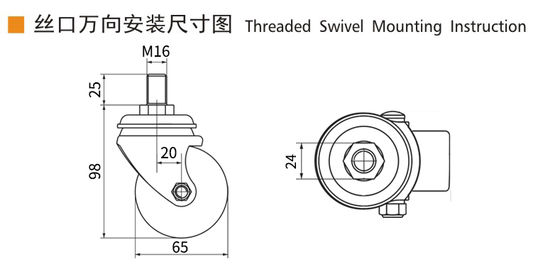

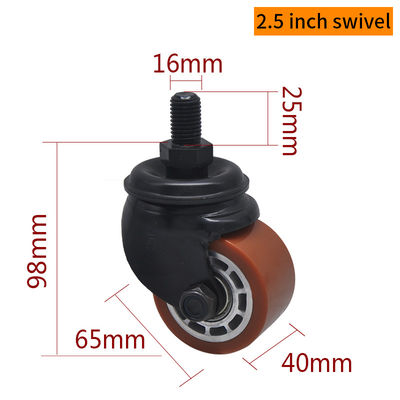

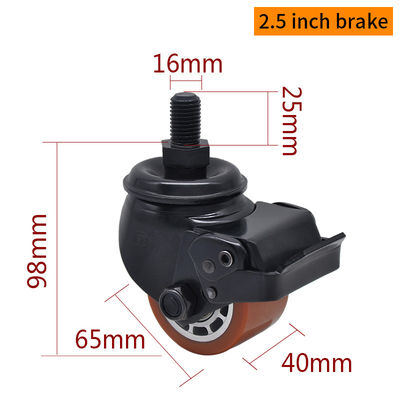

Product Images

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit?

A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?

A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?

A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?

A: Yes, sample is fine at any time, negotiable.
