EDL Equipment Casters 3Inch Threaded Swivel E-coated Casters 500Kg Road with Brake M433-86AS

Name: EDL Equipment Casters 3Inch Threaded Swivel E-coated Casters 500Kg Road with Brake M433-86AS
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M433-86AS
Availability: InStock

Brand Name:	EDL
Model Number:	M433-86AS
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

3inch(75mm)

Tread Material:

Aluminum

Mounting Type:

Threaded Swivel/Brake

Dynamic Load:

500kg

Mounting Height:

100mm

Frame Material:

Cold-Rolled Plate

Threaded Size:

M16*25

Bracket Thickness:

3mm

Surface Treatment:

Electrophoretic

Bracket Width:

46mm

Wheel Width:

40mm

Bearing:

Double Ball Bearings

Tread Color:

Brown

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Product Description

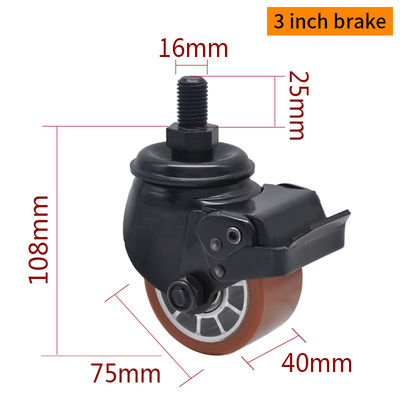

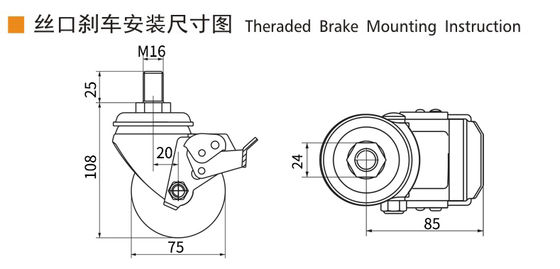

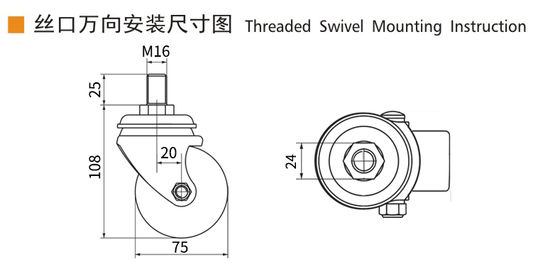

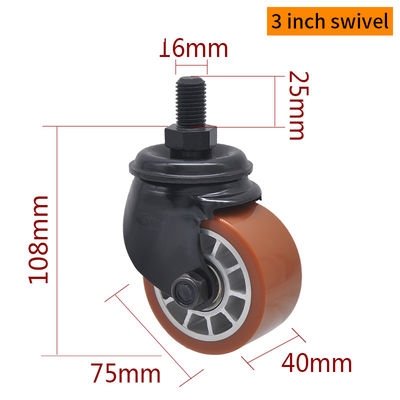

EDL Equipment Casters 3Inch Threaded Swivel E-coated Casters 500Kg Road with Brake M433-86AS

The EDL Equipment Caster M433-86AS is a 3-inch threaded-stem swivel caster engineered for heavy-duty equipment requiring high strength, flexibility, and smooth maneuverability. Designed with both swivel and brake versions, it adapts easily to a wide range of industrial and mechanical applications.

This caster features a high-performance TPU (thermoplastic polyurethane) wheel with an aluminum core, combining superior load capacity with quiet and smooth rolling. The TPU tread provides excellent wear resistance, shock absorption, and floor protection, while the aluminum hub ensures a lightweight yet rigid structure for enhanced durability. Each caster supports up to 500 kg, making it a reliable choice for industrial systems, automated machinery, and precision equipment.

With an E-coated steel bracket, the M433-86AS offers outstanding resistance to rust and corrosion, maintaining a clean and professional appearance over time. It operates effectively in temperatures from -30°C to 80°C, ensuring consistent performance under harsh environmental conditions. The 92A hardness gives it the perfect balance between toughness and traction.

Combining strength, stability, and silent operation, the EDL M433-86AS delivers a premium mobility solution for modern industrial needs.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

M433-86A

75mm

40mm

46mm

500Kg

Aluminum

TPU

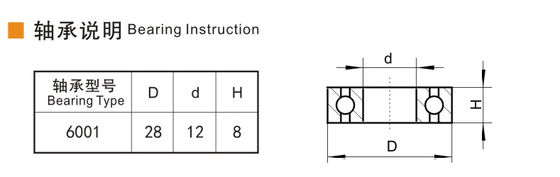

Double ball

bearing 6001

-30℃～80℃

92A

EDL Equipment Casters 3Inch Threaded Swivel E-coated Casters 500Kg Road with Brake M433-86AS 0

EDL Equipment Casters 3Inch Threaded Swivel E-coated Casters 500Kg Road with Brake M433-86AS 2

EDL Equipment Casters 3Inch Threaded Swivel E-coated Casters 500Kg Road with Brake M433-86AS 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Equipment Casters 3Inch Threaded Swivel E-coated Casters 500Kg Road with Brake M433-86AS 5
