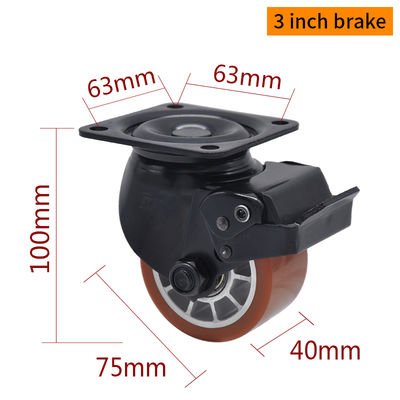

EDL Equipment Casters 3Inch Plate E-coated Casters 500Kg Road Rigid/Swivel/with Brake M433-86AP

Name: EDL Equipment Casters 3Inch Plate E-coated Casters 500Kg Road Rigid/Swivel/with Brake M433-86AP
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M433-86AP
Availability: InStock

Brand Name:	EDL
Model Number:	M433-86AP
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

3inch(75mm)

Tread Material:

Aluminum

Mounting Type:

Rigid/Swivel/Brake

Dynamic Load:

500kg

Mounting Height:

100mm

Frame Material:

Cold-Rolled Plate

Plate Thickness:

3mm

Bracket Thickness:

3mm

Surface Treatment:

Electrophoretic

Bracket Width:

46mm

Wheel Width:

40mm

Bearing:

Double Ball Bearings

Tread Color:

Brown

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

3 inch plate casters with brake

heavy duty equipment casters 500kg

E-coated rigid swivel casters

Product Description

EDL Equipment Casters 3Inch Plate E-coated Casters 500Kg Road Rigid/Swivel/with Brake M433-86AP

Product Description

The EDL Equipment Caster M433-86AP is a 3-inch plate-mounted industrial caster designed for heavy-duty applications that demand both strength and refined appearance. This model features an aluminum core wheel coated with high-quality polyurethane (PU), offering an ideal balance between durability, quiet operation, and floor protection.

Each caster supports up to 500 kg, delivering exceptional stability and performance for industrial machinery, factory systems, and precision instruments. The polyurethane tread ensures smooth and silent movement while minimizing vibration and noise, making it perfect for environments where comfort and cleanliness matter.

With its E-coated steel bracket, the M433-86AP boasts superior corrosion resistance and a sleek industrial finish. Operating reliably between -30°C and 80°C, it performs consistently in both cold and hot conditions. Available in rigid, swivel, and brake types, this caster offers versatile installation and control options.

Key Features

3-inch plate-mounted industrial caster for heavy-duty applications
Aluminum core wheel with high-quality polyurethane (PU) coating
500 kg load capacity per caster
E-coated steel bracket for superior corrosion resistance
Operates reliably between -30°C and 80°C

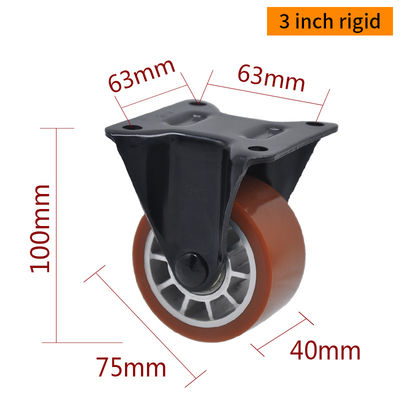

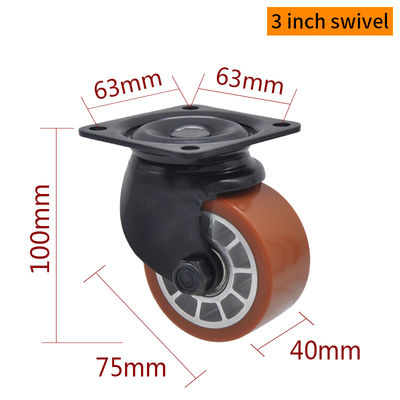

Available in rigid, swivel, and brake configurations
Smooth, silent movement with minimal vibration
Protects floors while providing excellent durability

Technical Specifications

Wheel Item No.	Size	Wheel Diameter	Wheel Width	Bracket Width	Load Capacity	Core	Tread	Bearing	Applicable Temperature	Hardness

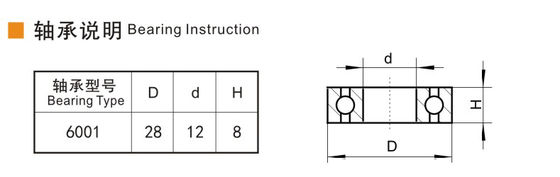

M433-86A	3"	75mm	40mm	46mm	500Kg	Aluminum	TPU	Double ball bearing 6001	-30℃～80℃	92A

Product Images

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit?

A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?

A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?

A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?

A: Yes, sample is fine at any time, negotiable.
