EDL Equipment Casters 2.5Inch E-coated Plate Aluminum Casters with Brake 450Kg Road M4325-86AP

Name: EDL Equipment Casters 2.5Inch E-coated Plate Aluminum Casters with Brake 450Kg Road M4325-86AP
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M4325-86AP
Availability: InStock

Brand Name:	EDL
Model Number:	M4325-86AP
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

2.5inch(65mm)

Tread Material:

Aluminum

Mounting Type:

Rigid/Swivel/Brake

Dynamic Load:

450kg

Mounting Height:

90mm

Frame Material:

Cold-Rolled Plate

Plate Thickness:

3mm

Bracket Thickness:

3mm

Surface Treatment:

Electrophoretic

Bracket Width:

46mm

Wheel Width:

40mm

Bearing:

Double Ball Bearings

Tread Color:

Brown

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

2.5 inch aluminum equipment casters

heavy-duty casters with brake

E-coated plate casters 450kg

Product Description

EDL Equipment Casters 2.5Inch E-coated Plate Aluminum Casters with Brake 450Kg Road M4325-86AP

The EDL Equipment Caster M4325-86AP is a 2.5-inch plate-mounted industrial caster built for compact heavy-duty equipment where stability and refined design are equally important. Featuring an aluminum core wrapped with durable polyurethane (PU), this caster provides an excellent combination of strength, smooth mobility, and quiet operation. Each unit supports up to 450 kg, ensuring reliable performance for industrial machines, production lines, and precision devices.

Key Features

Aluminum core with durable polyurethane (PU) tread for strength and quiet operation
Supports up to 450 kg per caster for heavy-duty applications
PU tread minimizes floor damage while reducing noise and vibration
Lightweight aluminum hub enhances load-bearing strength without added weight
E-coated steel bracket for superior corrosion and wear resistance
Reliable brake system for secure positioning and operational safety
Operates efficiently in temperatures from -30°C to 80°C
Ideal for compact machinery and professional equipment applications

Technical Specifications

Wheel Item No.	Size	Wheel Diameter	Wheel Width	Bracket Width	Load Capacity	Core	Tread	Bearing	Applicable Temperature	Hardness

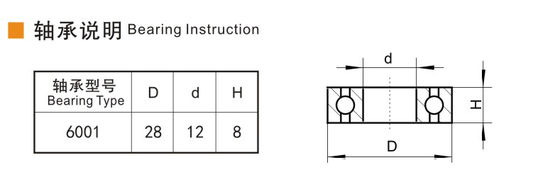

M4325-86A	2.5"	65mm	40mm	46mm	450Kg	Aluminum	TPU	Double ball bearing 6001	-30℃～80℃	92A

Product Images

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit?

A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?

A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?

A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?

A: Yes, sample is fine at any time, negotiable.
