EDL 4Inch Plate Equipment PA Casters M724P-16 By Rigid Swivel Load 800kg

Name: EDL 4Inch Plate Equipment PA Casters M724P-16 By Rigid Swivel Load 800kg
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M724P-16
Availability: InStock

Brand Name:	EDL
Model Number:	M724P-16
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

4inch

Tread Material:

Mounting Height:

130mm

Mounting Type:

Rigid/Plate Swivel

Frame Material:

Cold-Rolled Plate

Plate Thickness:

5mm

Bracket Thickness:

5mm

Surface Treatment:

Zinc Coating

Bracket Width:

52mm

Wheel Width:

46mm

Bearing:

Double Ball Bearing 6203

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Product Description

EDL 4Inch Plate Equipment PA Casters M724P-16 By Rigid Swivel Load 800kg

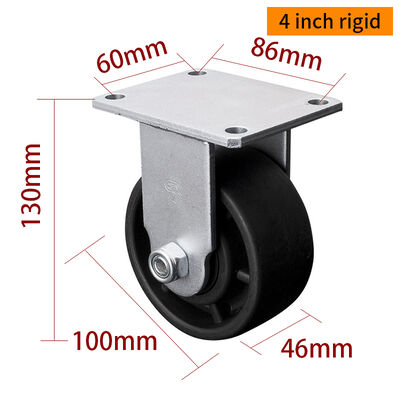

The EDL 4 Inch Plate-Mounted PA Equipment Caster M724P-16 is engineered for extreme load applications that demand superior structural strength and long-term durability. Each caster supports a maximum load of 800 kg, making it well suited for heavy industrial equipment, machinery frames, and large transport trolleys.

Featuring a wheel made from premium PA (polyamide / nylon), this caster delivers outstanding hardness, abrasion resistance, and load stability, even under continuous heavy use. The thickened steel bracket and robust plate mounting design enhance overall rigidity, helping prevent bending or deformation under high stress.

Offered in both rigid and swivel versions, the M724P-16 provides smooth maneuverability, reliable control, and consistent performance in harsh industrial working conditions.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

M724-16

100mm

46mm

52mm

800Kg

Double ball bearing 6203

-20℃～100℃

67D

EDL 4Inch Plate Equipment PA Casters M724P-16 By Rigid Swivel Load 800kg 0

EDL 4Inch Plate Equipment PA Casters M724P-16 By Rigid Swivel Load 800kg 2

EDL 4Inch Plate Equipment PA Casters M724P-16 By Rigid Swivel Load 800kg 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL 4Inch Plate Equipment PA Casters M724P-16 By Rigid Swivel Load 800kg 5
