EDL 3Inch Plate Equipment PA Casters M723P-16 By Rigid Swivel Load 750kg

Name: EDL 3Inch Plate Equipment PA Casters M723P-16 By Rigid Swivel Load 750kg
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M723P-16
Availability: InStock

Brand Name:	EDL
Model Number:	M723P-16
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

3inch

Tread Material:

Mounting Height:

105mm

Mounting Type:

Rigid/Plate Swivel

Frame Material:

Cold-Rolled Plate

Plate Thickness:

5mm

Bracket Thickness:

5mm

Surface Treatment:

Zinc Coating

Bracket Width:

52mm

Wheel Width:

46mm

Bearing:

Double Ball Bearing

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Product Description

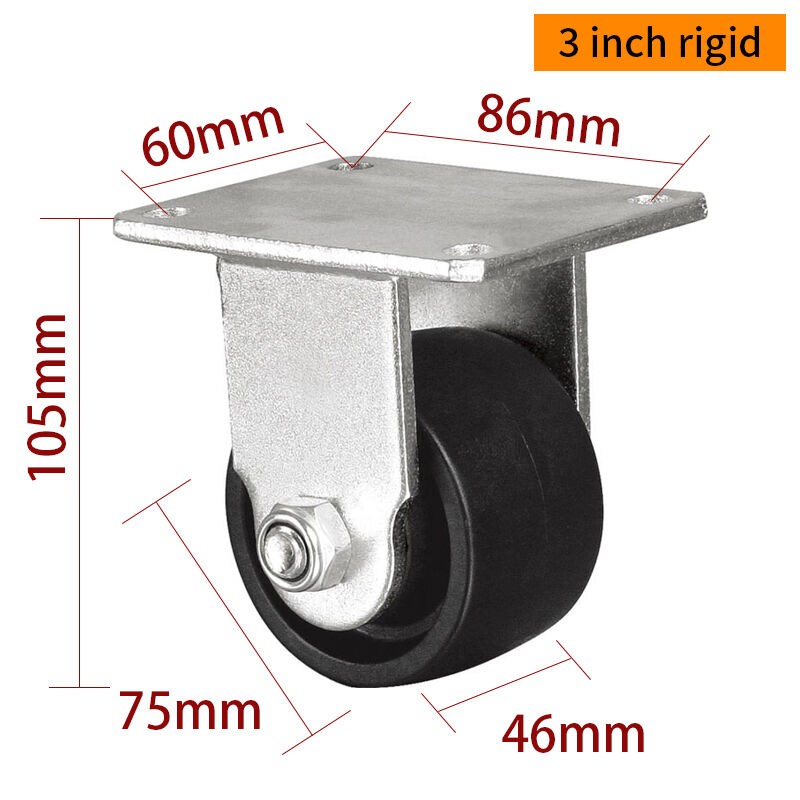

EDL 3Inch Plate Equipment PA Casters M723P-16 By Rigid Swivel Load 750kg

The EDL 3 Inch Plate Equipment Caster M723P-16 is engineered for extremely heavy-duty applications requiring exceptional strength and reliability. Designed to support a maximum load capacity of up to 750 kg per caster, this model is suitable for heavy machinery, large equipment, and industrial transport systems.

The caster features a reinforced steel bracket and top plate with a thickness of 5 mm, providing outstanding structural rigidity and resistance to deformation under high loads. The nylon wheel tread offers high hardness, excellent wear resistance, and smooth rolling performance, even in demanding industrial environments.

Available in rigid and swivel configurations, the M723P-16 delivers stable movement, strong load-bearing performance, and long service life, making it an ideal solution for high-load equipment mobility.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

M723-16

75mm

46mm

52mm

750Kg

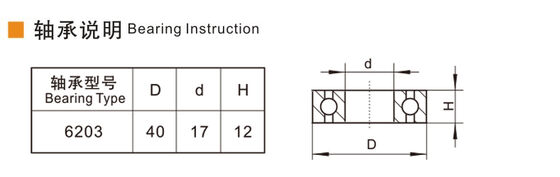

Double ball bearing 6203

-20℃～100℃

67D

EDL 3Inch Plate Equipment PA Casters M723P-16 By Rigid Swivel Load 750kg 0

EDL 3Inch Plate Equipment PA Casters M723P-16 By Rigid Swivel Load 750kg 2

EDL 3Inch Plate Equipment PA Casters M723P-16 By Rigid Swivel Load 750kg 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL 3Inch Plate Equipment PA Casters M723P-16 By Rigid Swivel Load 750kg 5
