EDL Equipment Casters 3Inch PA E-coated Casters With Brake M433-16P 500Kg Road

Name: EDL Equipment Casters 3Inch PA E-coated Casters With Brake M433-16P 500Kg Road
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M433-16P
Availability: InStock

Brand Name:	EDL
Model Number:	M433-16P
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

3inch(75mm)

Tread Material:

Mounting Type:

Rigid/Swivel/Brake

Dynamic Load:

500kg

Mounting Height:

100mm

Frame Material:

Cold-Rolled Plate

Plate Thickness:

3mm

Bracket Thickness:

3mm

Surface Treatment:

Electrophoretic

Bracket Width:

46mm

Wheel Width:

40mm

Bearing:

Double Ball Bearings

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

3 inch PA E-coated casters with brake

heavy-duty equipment casters 500kg

M433-16P road casters with warranty

Product Description

EDL Equipment Casters 3Inch PA E-coated Casters With Brake M433-16P 500Kg Road

The EDL Equipment Caster M433-16P is a 3-inch low-profile heavy-duty caster specifically engineered for industrial and mechanical equipment that requires maximum stability and load-bearing capacity. Constructed with a black PA (nylon) wheel, this caster combines high impact strength with excellent wear resistance, ensuring long-lasting performance in demanding environments.

Key Features

500 kg load capacity per unit for heavy-duty applications
Black PA (nylon) wheel with 67D hardness for durability
E-coated steel bracket for superior corrosion resistance
Precision brake mechanism for secure equipment positioning
Temperature tolerance from -20°C to 100°C

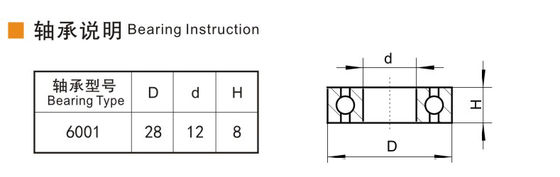

Double ball bearing (6001) for smooth rolling performance
Suitable for both indoor and semi-outdoor industrial use

Technical Specifications

Wheel Item No.	Size	Wheel Diameter	Wheel Width	Bracket Width
M433-16	3"	75mm	40mm	46mm
Load Capacity	Core	Tread	Bearing	Hardness
500Kg	/	PA	Double ball bearing 6001	67D

Product Images

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit?

A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?

A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?

A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?

A: Yes, sample is fine at any time, negotiable.
