EDL Equipment Casters 2.5Inch PA Wheels With E-coated bracket Brake M4325-16P 450Kg Road

Name: EDL Equipment Casters 2.5Inch PA Wheels With E-coated bracket Brake M4325-16P 450Kg Road
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M4325-16P
Availability: InStock

Brand Name:	EDL
Model Number:	M4325-16P
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

2.5inch(65mm)

Tread Material:

Mounting Type:

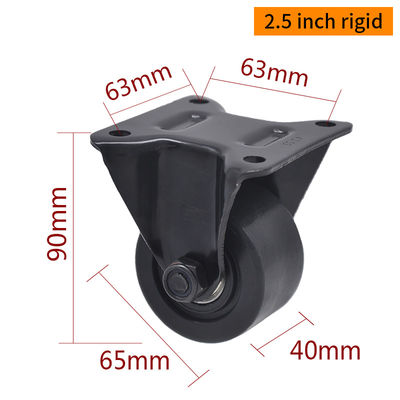

Rigid/Swivel/Brake

Dynamic Load:

450kg

Mounting Height:

90mm

Frame Material:

Cold-Rolled Plate

Plate Thickness:

3mm

Bracket Thickness:

3mm

Surface Treatment:

Electrophoretic

Bracket Width:

46mm

Wheel Width:

40mm

Bearing:

Double Ball Bearings

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

EDL Equipment Casters 2.5 inch wheels

PA caster wheels with brake

450kg capacity equipment casters

Product Description

EDL Equipment Casters 2.5Inch PA Wheels With E-coated bracket Brake M4325-16P 450Kg Road

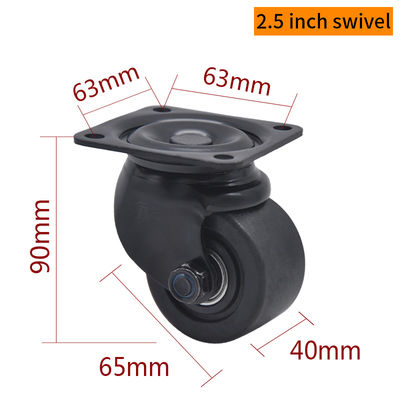

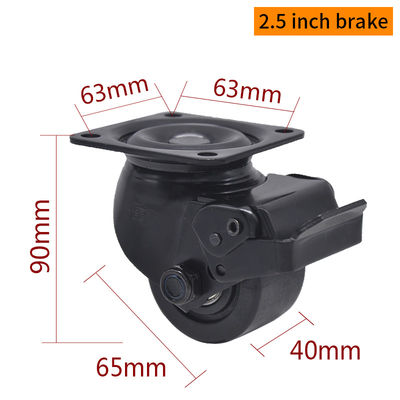

The EDL Equipment Caster M4325-16P is a low-center-of-gravity industrial caster designed for heavy-duty machinery and equipment. Built with a 2.5-inch black PA (nylon) wheel, it offers exceptional strength and stability while maintaining smooth and reliable movement under extreme conditions. Each caster supports up to 450 kg, making it ideal for applications requiring high load capacity and secure positioning.

The E-coated steel bracket ensures excellent corrosion resistance and durability, even in harsh industrial environments. With an operating temperature range from -20°C to 100°C and a hardness of 67D, this caster delivers consistent performance in both cold and hot conditions. Equipped with a precision brake system, it provides superior control and safety during operation.

Perfect for industrial equipment, automation systems, and heavy machinery, the EDL M4325-16P combines strength, stability, and longevity for demanding use cases.

Product Specifications

Wheel Item No.	Size	Wheel Diameter	Wheel Width	Bracket Width	Load Capacity	Core	Tread	Bearing	Applicable Temperature	Hardness

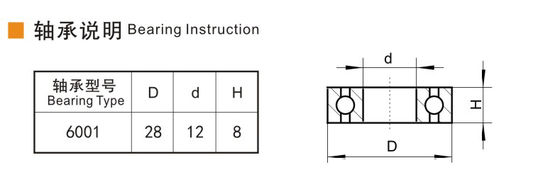

M4325-16	2.5"	65mm	40mm	46mm	450Kg	/	PA	Double ball bearing 6001	-20℃～100℃	67D

Product Images

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit?

A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?

A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?

A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?

A: Yes, sample is fine at any time, negotiable.
