EDL Equipment Casters 2 Inch PA Threaded Casters With Brake M412S-16 250Kg Road

Name: EDL Equipment Casters 2 Inch PA Threaded Casters With Brake M412S-16 250Kg Road
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M412S-16
Availability: InStock

Brand Name:	EDL
Model Number:	M412S-16
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

2inch(50mm)

Tread Material:

Mounting Type:

Swivel/Brake

Dynamic Load:

250kg

Mounting Height:

76mm

Frame Material:

Cold-Rolled Plate

Standard Threaded:

M12×25

Bracket Thickness:

2mm

Surface Treatment:

Zinc Coating

Bracket Width:

41mm

Wheel Width:

35mm

Bearing:

Double Ball Bearings

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

Brake Equipment Casters

Threaded Equipment Casters

2 Inch Equipment Casters

Product Description

EDL Equipment Casters 2 Inch PA Threaded Casters with Brake M412S-16 250Kg Road

The EDL 2-Inch Threaded Equipment Caster with Brake is built with a robust black PA (nylon) wheel, offering a reliable solution for demanding industrial applications. Known for its excellent strength-to-weight ratio, PA material provides solid resistance to wear, impact, and most chemicals, making it well-suited for environments that require both durability and consistent performance over time.

With a compact 2-inch diameter and low-profile design, this caster is especially useful for equipment where height clearance is limited but stability is still essential. The smaller size does not compromise its strength—each caster supports up to 250kg, making it suitable for medium to heavy-duty equipment such as compact machinery, workstations, or rolling toolboxes.

The caster features a strong M12×25 threaded stem, allowing for secure and easy installation across a range of equipment types. A built-in brake function offers dependable locking when needed, helping to keep equipment stationary and safe during operation or loading. Engineered for balance, load capacity, and quiet mobility, this caster is a versatile choice for precision movement in industrial and commercial settings.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

M412-16

50mm

35mm

41mm

250Kg

Double ball

bearing 6001

-20℃～100℃

67D

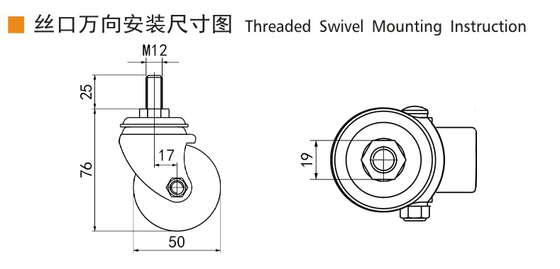

EDL Equipment Casters 2 Inch PA Threaded Casters With Brake M412S-16 250Kg Road 0

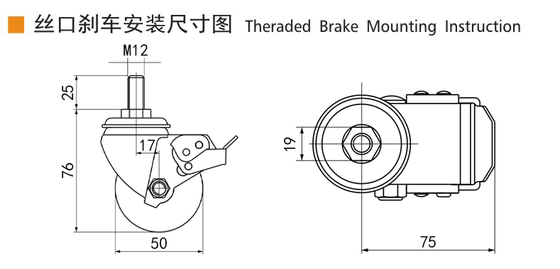

EDL Equipment Casters 2 Inch PA Threaded Casters With Brake M412S-16 250Kg Road 2

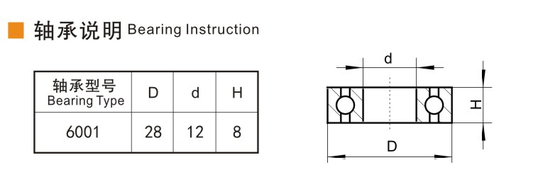

EDL Equipment Casters 2 Inch PA Threaded Casters With Brake M412S-16 250Kg Road 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Equipment Casters 2 Inch PA Threaded Casters With Brake M412S-16 250Kg Road 5
