EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road

Name: EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M4125S-16
Availability: InStock

Brand Name:	EDL
Model Number:	M4125S-16
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

2.5inch(65mm)

Tread Material:

Mounting Type:

Swivel/Brake

Dynamic Load:

300kg

Mounting Height:

91mm

Frame Material:

Cold-Rolled Plate

Standard Threaded:

M12×25

Bracket Thickness:

2mm

Surface Treatment:

Zinc Coating

Bracket Width:

41mm

Wheel Width:

35mm

Bearing:

Double Ball Bearings

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

Threaded equipment moving casters

300Kg equipment moving casters

Brake Threaded equipment moving casters

Product Description

EDL Equipment Casters 2.5 Inch Threaded Casters with Brake M4125S-16 300Kg Road

The EDL 2.5-Inch Threaded Equipment Caster with Brake features a black high-strength nylon (PA) wheel, engineered for exceptional wear resistance, impact strength, and corrosion resistance. The PA material offers excellent hardness and dimensional stability, making it ideal for long-term use under heavy loads and in demanding industrial environments. It resists deformation and maintains consistent performance even during frequent movement and high-pressure conditions. This caster is designed with a low center of gravity, which enhances overall equipment stability and reduces the risk of tipping or swaying during transport. It is particularly suitable for large machinery, heavy-duty appliances, and medical or industrial equipment where both safety and load-bearing capability are critical. The caster uses an M12×25 threaded stem for secure installation and broad compatibility with various equipment structures. Equipped with a reliable brake mechanism, it ensures firm locking to prevent unwanted rolling, enhancing both operational safety and control. With a load capacity of up to 300kg, this caster is a high-performance solution for heavy-duty equipment applications.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

M4125-16

2.5"

65mm

35mm

41mm

300Kg

Double ball

bearing 6001

-20℃～100℃

67D

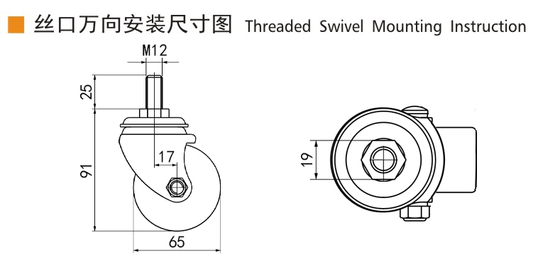

EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road 0

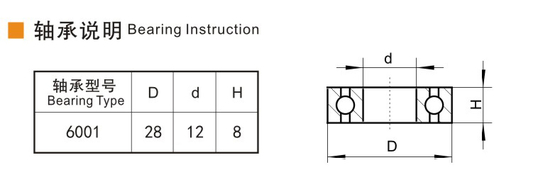

EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road 2

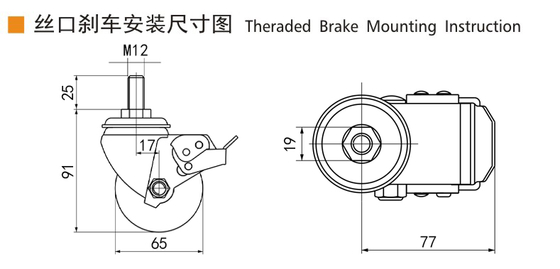

EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

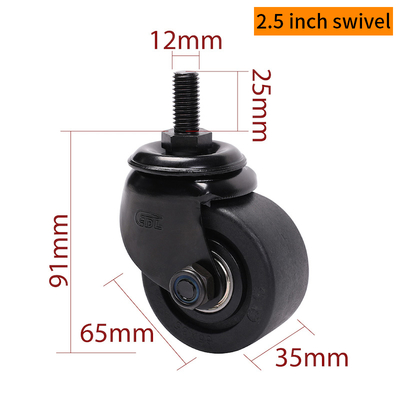

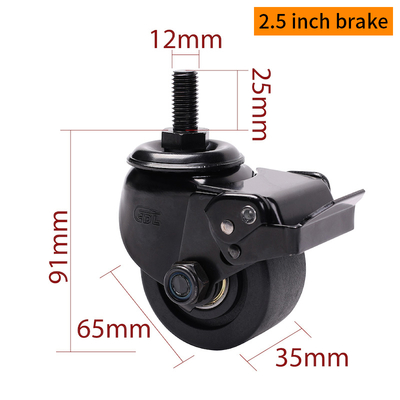

EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road 5
