EDL 2 Inch Plate Equipment Caster By Rigid Swivel Brake Type M412P-16 250kg Road

Name: EDL 2 Inch Plate Equipment Caster By Rigid Swivel Brake Type M412P-16 250kg Road
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M412P-16
Availability: InStock

Brand Name:	EDL
Model Number:	M412P-16
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

2inch(50mm)

Tread Material:

Mounting Type:

Rigid/Swivel/Brake

Dynamic Load:

250kg

Mounting Height:

70mm

Frame Material:

Cold-Rolled Plate

Plate Thickness:

2mm

Bracket Thickness:

2mm

Surface Treatment:

Zinc Coating

Bracket Width:

41mm

Wheel Width:

35mm

Bearing:

Double Ball Bearings

Tread Color:

Black

Applicable Temperature:

-20℃～100℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

Rigid type equipment caster

brake type equipment caster

2 inch plate equipment caster

Product Description

EDL 2inch Plate PA Equipment Caster by Rigid, Swivel and Brake type M412P-16 250kg Road

The EDL 2-Inch Plate PA Equipment Caster (Model M412P-16) is engineered for heavy-duty performance in industrial and equipment-intensive environments. Constructed from high-strength black PA (Nylon), this caster delivers exceptional durability, wear resistance, and impact tolerance, making it ideal for long-term use under heavy loads. With a maximum load capacity of 250kg, it is specifically designed to support large machinery and equipment where stability and strength are critical. The caster is available in rigid, swivel, and brake configurations, offering flexible movement control depending on application needs. Its plate-mount design ensures a secure and stable installation on flat surfaces, while the low-profile structure lowers the equipment’s center of gravity, improving balance and reducing the risk of tipping. Whether installed on industrial platforms, mobile workstations, or other heavy devices, the M412P-16 offers a perfect combination of maneuverability, strength, and safety. With its clean black finish and robust build, this caster is a dependable solution for high-load, low-clearance applications requiring both mobility and precision.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

M412-16

50mm

35mm

41mm

250Kg

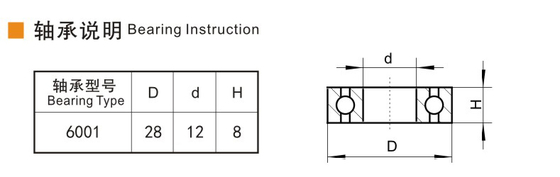

Double ball

bearing 6001

-20℃～100℃

67D

EDL 2 Inch Plate Equipment Caster By Rigid Swivel Brake Type M412P-16 250kg Road 0

EDL 2 Inch Plate Equipment Caster By Rigid Swivel Brake Type M412P-16 250kg Road 2

EDL 2 Inch Plate Equipment Caster By Rigid Swivel Brake Type M412P-16 250kg Road 4

EDL 2 Inch Plate Equipment Caster By Rigid Swivel Brake Type M412P-16 250kg Road 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL 2 Inch Plate Equipment Caster By Rigid Swivel Brake Type M412P-16 250kg Road 7
