EDL TPU Equipment Casters 2 Inch Threaded Casters 250Kg Load With Brake M412S-86A

Name: EDL TPU Equipment Casters 2 Inch Threaded Casters 250Kg Load With Brake M412S-86A
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: M412S-86A
Availability: InStock

Brand Name:	EDL
Model Number:	M412S-86A
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Equipment Casters

Wheel Diameter:

2inch(50mm)

Tread Material:

TPU

Core Material:

Aluminum

Dynamic Load:

250kg

Mounting Height:

76mm

Frame Material:

Cold-Rolled Plate

Standard Threaded:

M12×25

Bracket Thickness:

2mm

Surface Treatment:

Zinc Coating

Bracket Width:

41mm

Wheel Width:

35mm

Bearing:

Double Ball Bearings

Tread Color:

Brown

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

2 Inch Threaded Equipment Casters

Brake Equipment Casters

TPU Equipment Casters

Product Description

EDL TPU Equipment Casters 2 Inch Threaded Casters 250Kg Road with Brake M412S-86A

The EDL 2-Inch Threaded Equipment Caster with Brake is engineered for performance and durability, featuring a high-quality TPU (thermoplastic polyurethane) tread combined with a solid aluminum alloy core. Manufactured using precision casting technology, the wheel offers enhanced structural integrity and long-lasting wear resistance, making it ideal for demanding industrial applications.

The TPU material delivers a smooth, quiet rolling experience while effectively absorbing shocks and vibrations. This helps protect both the equipment and the floor surface during movement, especially in environments where noise reduction and surface care are important. Unlike standard wheels, TPU provides excellent resilience, non-marking performance, and outstanding load-bearing capabilities.

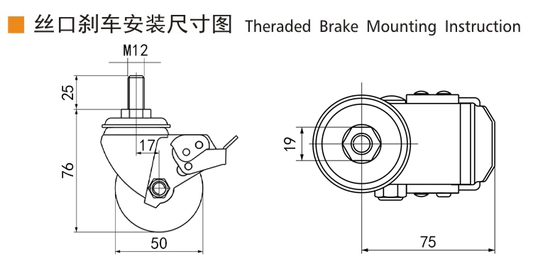

With a compact 2-inch size and low center of gravity design, this caster improves equipment stability and control, even under dynamic loads. It uses an M12×25 threaded stem for easy installation and secure attachment. Designed for use on heavy-duty devices, machinery, or carts, and supporting up to 250kg per wheel, this caster is a reliable choice when both strength and smooth mobility are required.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

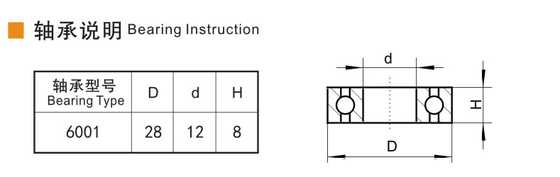

Bearing

Applicable

Temperature

Hardness

M412-86A

50mm

35mm

41mm

250Kg

Aluminum

TPU

Double ball

bearing 6001

-30℃～80℃

92A

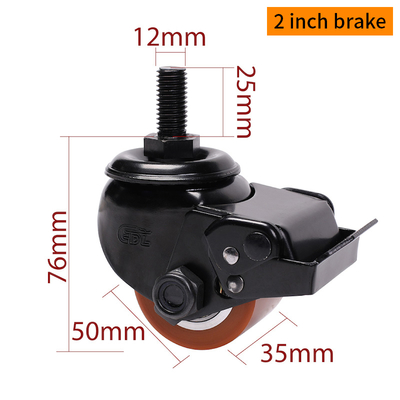

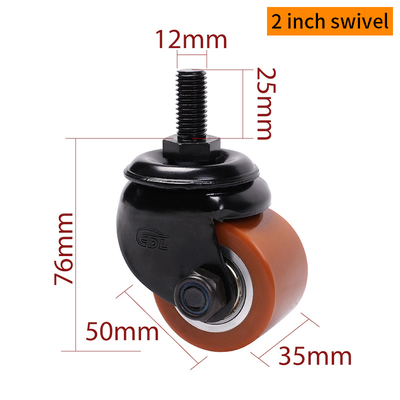

EDL TPU Equipment Casters 2 Inch Threaded Casters 250Kg Load With Brake M412S-86A 0

EDL TPU Equipment Casters 2 Inch Threaded Casters 250Kg Load With Brake M412S-86A 2

EDL TPU Equipment Casters 2 Inch Threaded Casters 250Kg Load With Brake M412S-86A 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL TPU Equipment Casters 2 Inch Threaded Casters 250Kg Load With Brake M412S-86A 5
