EDL 3Inch Stainless Steel Threaded Caster Loading 150Kg With TPU Wheel S543S-85

Name: EDL 3Inch Stainless Steel Threaded Caster Loading 150Kg With TPU Wheel S543S-85
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: S543S-85
Availability: InStock

Brand Name:	EDL
Model Number:	S543S-85
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

3inch(75mm)

Tread Material:

TPU

Dynamic Load:

150kg

Mounting Type:

Threaded Swivel/Brake

Mounting Height:

109mm

Frame Material:

304# Stainless Steel

Threaded Size:

M12*25

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Derlin

Tread Color:

Red

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

3 inch stainless steel caster

threaded caster with TPU wheel

heavy duty caster 150kg load

Product Description

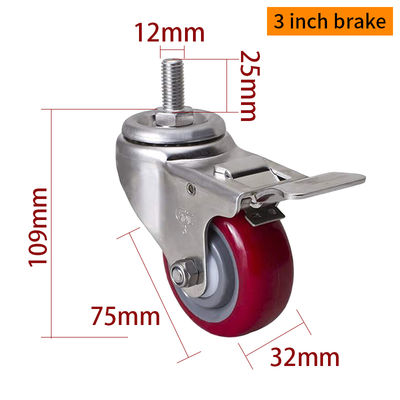

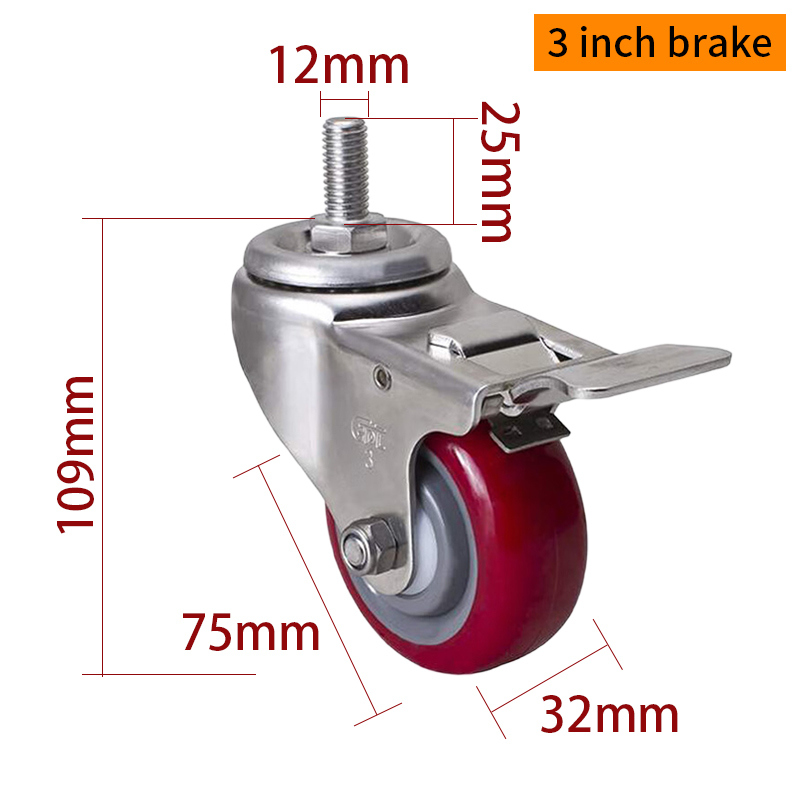

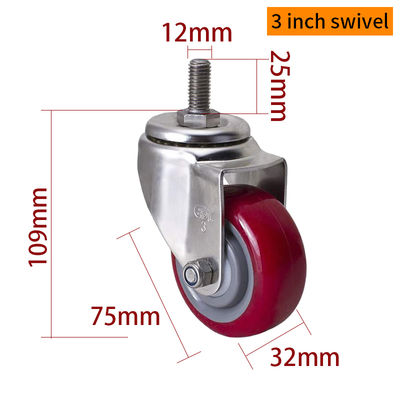

EDL 3Inch Stainless Steel Threaded Caster Loading 150Kg With TPU Wheel S543S-85

The EDL 3-Inch Stainless Steel Threaded Caster S543S-85 is a versatile mobility solution featuring a vibrant red TPU wheel. Designed for both swivel (with brake) and rigid configurations, it offers flexibility for various applications. The durable TPU wheel provides excellent floor protection, shock absorption, and quiet operation, while supporting a maximum load of 150 kg per wheel.Equipped with a stainless steel threaded stem, this caster ensures secure installation on a wide range of equipment, including medical carts, industrial trolleys, laboratory devices, and food service carts. The red TPU wheel enhances visibility and adds a modern, stylish touch to your equipment.

Built for durability and corrosion resistance, the stainless steel frame performs reliably even in humid or chemically demanding environments. Ideal for both commercial and industrial use, the EDL 3-Inch Threaded Red TPU Caster combines strength, maneuverability, and aesthetic appeal, making it a dependable choice for equipment requiring both stability and mobility.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

S543S-85

75mm

32mm

41mm

150KG

TPU

Derlin

-20℃～80℃

95A

EDL 3Inch Stainless Steel Threaded Caster Loading 150Kg With TPU Wheel S543S-85 0

EDL 3Inch Stainless Steel Threaded Caster Loading 150Kg With TPU Wheel S543S-85 2

EDL 3Inch Stainless Steel Threaded Caster Loading 150Kg With TPU Wheel S543S-85 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
