EDL 5Inch Stainless Steel Threaded Swivel/Brake Caster Loading 150Kg S545S-25

Name: EDL 5Inch Stainless Steel Threaded Swivel/Brake Caster Loading 150Kg S545S-25
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: S545S-25
Availability: InStock

Brand Name:	EDL
Model Number:	S545S-25
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

5inch(125mm)

Tread Material:

TPA

Dynamic Load:

150kg

Mounting Type:

Threaded Swivel/Brake

Mounting Height:

161mm

Frame Material:

304# Stainless Steel

Threaded Size:

M12*25

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Derlin

Tread Color:

White

Applicable Temperature:

-20℃～120℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

5 inch stainless steel caster

threaded swivel caster 150kg

stainless steel brake caster

Product Description

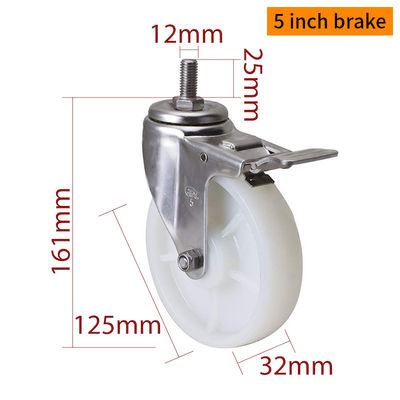

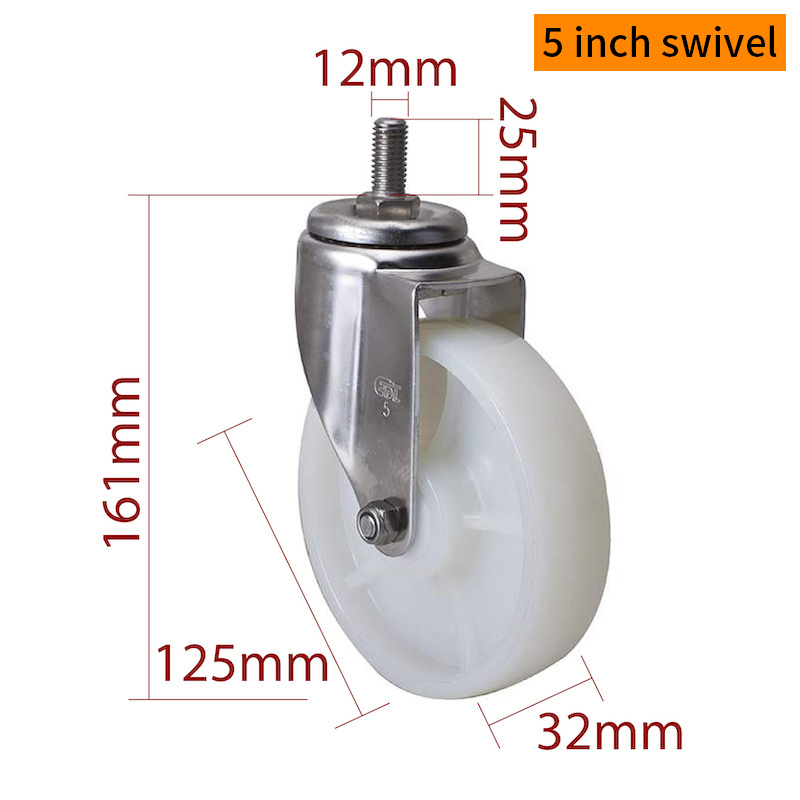

EDL 5Inch Stainless Steel Threaded Swivel/Brake Caster Loading 150Kg S545S-25

The EDL 5-Inch Stainless Steel Threaded Swivel/Brake Caster S545S-25 features a white nylon wheel engineered for high wear resistance and long-lasting performance. Equipped with a stainless steel threaded stem, it provides secure and reliable installation on a wide variety of equipment. Available in swivel (with brake) and rigid versions, each caster supports up to 150 kg, ensuring smooth, stable, and quiet movement even under heavy loads.The nylon wheel is abrasion-resistant, low-maintenance, and capable of withstanding temperatures up to 120°C, making it suitable for industrial trolleys, medical carts, laboratory instruments, and food service equipment. Its clean white color delivers a professional and neutral appearance suitable for any environment.Constructed with a stainless steel frame, this caster offers excellent corrosion and rust resistance, ensuring reliable operation in humid or chemically demanding conditions. The 5-inch wheel size improves maneuverability and obstacle-crossing ability, allowing effortless movement across different surfaces. The EDL 5-Inch Threaded White Nylon Caster combines durability, heat resistance, and strength, making it an ideal solution for commercial, industrial, and laboratory applications.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

S545S-25

125mm

32mm

41mm

150KG

TPA

Derlin

-20℃～120℃

67D

EDL 5Inch Stainless Steel Threaded Swivel/Brake Caster Loading 150Kg S545S-25 0

EDL 5Inch Stainless Steel Threaded Swivel/Brake Caster Loading 150Kg S545S-25 2

EDL 5Inch Stainless Steel Threaded Swivel/Brake Caster Loading 150Kg S545S-25 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
