EDL 5Inch Stainless Steel Medium Duty Caster With Red TPU Wheel Loading 150Kg S545P-85

Name: EDL 5Inch Stainless Steel Medium Duty Caster With Red TPU Wheel Loading 150Kg S545P-85
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: S545P-85
Availability: InStock

Brand Name:	EDL
Model Number:	S545P-85
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

5inch(125mm)

Tread Material:

TPU

Dynamic Load:

150kg

Mounting Type:

Rigid/Swivel/Brake

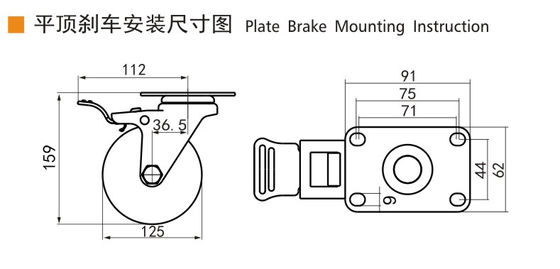

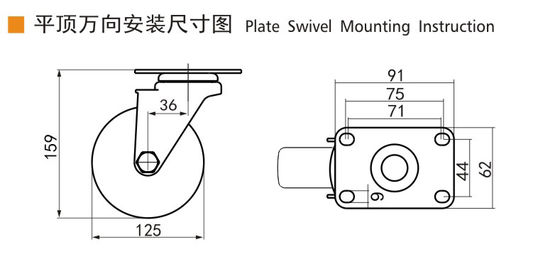

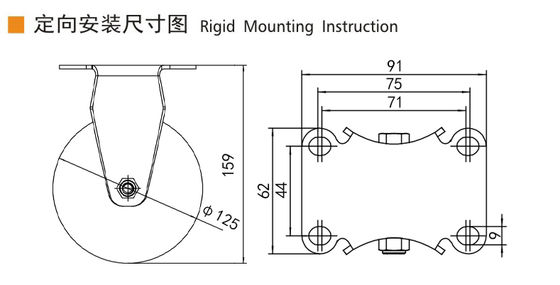

Mounting Height:

159mm

Frame Material:

304# Stainless Steel

Plate Thickness:

3mm

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Derlin

Tread Color:

Red

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

stainless steel medium duty caster

red TPU wheel caster

150kg load capacity caster

Product Description

EDL 5Inch Stainless Steel Medium Duty Caster With Red TPU Wheel Loading 150Kg S545P-85

The EDL 5-Inch Stainless Steel Medium Duty Caster S545P-85 is engineered for heavy-duty performance with a bold and modern design. Its red TPU wheel not only adds a vibrant, eye-catching look but also ensures excellent shock absorption, floor protection, and quiet operation. Each caster supports up to 150 kg, offering smooth and stable mobility for a wide variety of equipment, including industrial carts, food service trolleys, laboratory instruments, and medical devices.

Built with a stainless steel frame, this caster provides superior corrosion and rust resistance, making it ideal for use in humid, chemical, or outdoor environments. The larger 5-inch wheel improves maneuverability and obstacle-crossing capability, allowing for effortless movement even on uneven surfaces.

Designed for strength, durability, and visual appeal, the EDL 5-Inch Red TPU Caster delivers reliable performance with a professional look. It is the perfect choice for commercial, industrial, and laboratory applications that require both high load capacity and stylish design

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

S545P-85

125mm

32mm

41mm

150KG

TPU

Derlin

-20℃～80℃

95A

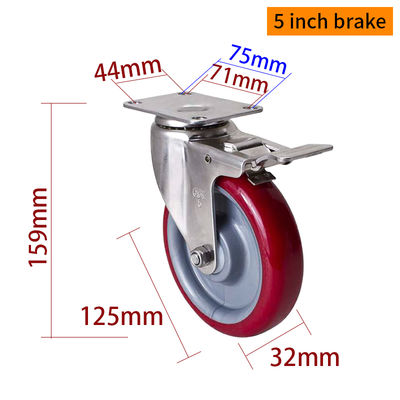

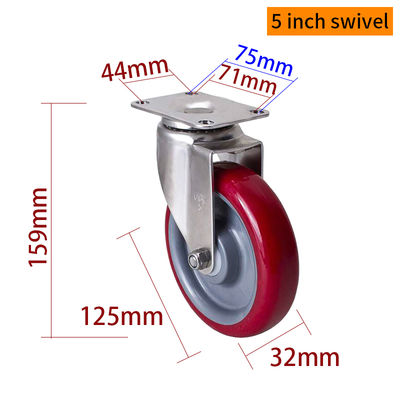

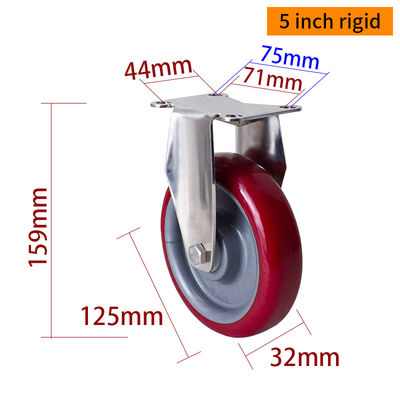

EDL 5Inch Stainless Steel Medium Duty Caster With Red TPU Wheel Loading 150Kg S545P-85 0

EDL 5Inch Stainless Steel Medium Duty Caster With Red TPU Wheel Loading 150Kg S545P-85 2

EDL 5Inch Stainless Steel Medium Duty Caster With Red TPU Wheel Loading 150Kg S545P-85 4

EDL 5Inch Stainless Steel Medium Duty Caster With Red TPU Wheel Loading 150Kg S545P-85 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL 5Inch Stainless Steel Medium Duty Caster With Red TPU Wheel Loading 150Kg S545P-85 7
