EDL 3Inch Stainless Steel Medium Duty Caster With Red Wheel Loading 150Kg S543P-85

Name: EDL 3Inch Stainless Steel Medium Duty Caster With Red Wheel Loading 150Kg S543P-85
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: S543P-85
Availability: InStock

Brand Name:	EDL
Model Number:	S543P-85
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

3inch(75mm)

Tread Material:

TPU

Dynamic Load:

150kg

Mounting Type:

Rigid/Swivel/Brake

Mounting Height:

107mm

Frame Material:

304# Stainless Steel

Plate Thickness:

3mm

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

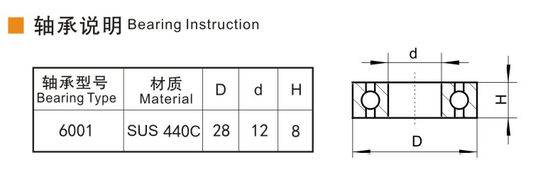

Bearing:

Derlin

Tread Color:

Red

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

3 inch stainless steel caster

medium duty caster with red wheel

stainless steel caster 150kg capacity

Product Description

EDL 3Inch Stainless Steel Medium Duty Caster With Red Wheel Loading 150Kg S543P-85

The EDL 3-Inch Stainless Steel Medium Duty Caster S543P-85 stands out with its vibrant red TPU wheel, combining style with superior functionality. The bright red design not only adds a modern and eye-catching touch to your equipment but also represents high visibility and durability in demanding environments. The TPU wheel offers an excellent balance of elasticity, wear resistance, and floor protection, ensuring smooth, quiet, and stable movement. Each caster supports up to 150 kg, making it suitable for medical carts, food service trolleys, display racks, and industrial workstations.

Crafted with a stainless steel frame, this caster provides outstanding corrosion resistance and maintains reliable performance even in humid or chemical environments. Designed for both aesthetics and efficiency, the red TPU wheel delivers a professional look while enhancing mobility and safety. Ideal for commercial, industrial, and laboratory applications, the EDL 3-Inch Red Wheel Caster offers the perfect blend of strength, durability, and visual appeal.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

S543P-85

75mm

32mm

41mm

150KG

TPU

Derlin

-20℃～80℃

95A

EDL 3Inch Stainless Steel Medium Duty Caster With Red Wheel Loading 150Kg S543P-85 0

EDL 3Inch Stainless Steel Medium Duty Caster With Red Wheel Loading 150Kg S543P-85 2

EDL 3Inch Stainless Steel Medium Duty Caster With Red Wheel Loading 150Kg S543P-85 4

EDL 3Inch Stainless Steel Medium Duty Caster With Red Wheel Loading 150Kg S543P-85 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL 3Inch Stainless Steel Medium Duty Caster With Red Wheel Loading 150Kg S543P-85 7
