EDL 5Inch Stainless Steel Medium Duty Caster With Durable Wheel Loading 150Kg S545P-75

EDL 5Inch Stainless Steel Medium Duty Caster With Durable Wheel Loading 150Kg S545P-75

Brand Name: EDL
Model Number: S545P-75
MOQ: 1pcs
Price: Negotiate
Payment Terms: T/T
Supply Ability: 30,000pcs/day
Detail Information
Place of Origin:
China
Certification:
ISO9001, ISO14001, RoHS
Wheel Diameter:
5inch(125mm)
Tread Material:
TPU
Dynamic Load:
150kg
Mounting Type:
Rigid/Swivel/Brake
Mounting Height:
159mm
Frame Material:
304# Stainless Steel
Plate Thickness:
3mm
Bracket Thickness:
2.5mm
Bracket Width:
41mm
Wheel Width:
32mm

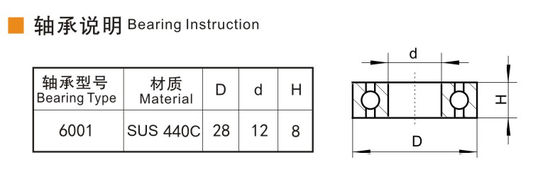

Bearing:
Derlin
Tread Color:
Grey
Applicable Temperature:
-20℃~80℃
Tread Hardness:
95A
Packaging Details:
Carton
Supply Ability:
30,000pcs/day
Highlight:

5-inch stainless steel caster

,

medium duty caster 150kg

,

durable wheel stainless caster

Product Description

EDL 5Inch Stainless Steel Medium Duty Caster With TPU Wheel Loading 150Kg S545P-75


The EDL 5-Inch Stainless Steel Medium Duty Caster S545P-75 is engineered for durability and reliable performance in a wide range of settings. Equipped with a high-quality TPU wheel, it offers excellent shock absorption, quiet operation, and strong floor protection, supporting a maximum load of 150 kg per wheel. Its robust design makes it perfect for industrial trolleys, medical carts, laboratory equipment, and food service carts, providing smooth and stable movement even under heavy loads.The stainless steel housing delivers superior corrosion and rust resistance, ensuring long-term functionality in wet, humid, or chemically demanding environments. The larger 5-inch wheel improves maneuverability and obstacle-crossing ability, allowing the caster to roll effortlessly across different surfaces, including uneven floors.Designed with both performance and convenience in mind, this caster ensures easy handling, long service life, and minimal maintenance. Its combination of strength, mobility, and durability makes it an excellent solution for commercial, industrial, and laboratory applications, helping equipment move efficiently and safely. The EDL 5-Inch Medium Duty Caster is a reliable choice for those who require high load capacity and versatile usage without compromising on floor protection or quiet operation.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core Tread Bearing

Applicable

Temperature

Hardness
S545P-75 5" 125mm 32mm 41mm 150KG PP

TPU

Derlin

-20℃~80 95A

EDL 5Inch Stainless Steel Medium Duty Caster With Durable  Wheel Loading 150Kg S545P-75 0EDL 5Inch Stainless Steel Medium Duty Caster With Durable  Wheel Loading 150Kg S545P-75 1

EDL 5Inch Stainless Steel Medium Duty Caster With Durable  Wheel Loading 150Kg S545P-75 2EDL 5Inch Stainless Steel Medium Duty Caster With Durable  Wheel Loading 150Kg S545P-75 3

EDL 5Inch Stainless Steel Medium Duty Caster With Durable  Wheel Loading 150Kg S545P-75 4EDL 5Inch Stainless Steel Medium Duty Caster With Durable  Wheel Loading 150Kg S545P-75 5

EDL 5Inch Stainless Steel Medium Duty Caster With Durable  Wheel Loading 150Kg S545P-75 6



FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
