EDL‌ Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A

Name: EDL Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 665P-86A
Availability: InStock

Brand Name:	EDL
Model Number:	665P-86A
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

5inch(125mm)

Dynamic Load:

300kg

Tread Material:

TPU

Core Material:

Aluminum

Mounting Type:

Rigid/Swivel/Brake

Mounting Height:

166mm

Frame Material:

Hot-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

4mm

Bracket Thickness:

3mm

Bracket Width:

46mm

Wheel Width:

38mm

Bearing:

Double Ball Bearing

Tread Color:

Yellow

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

300kg industrial caster wheels

300kg industrial heavy duty caster wheels

medium duty industrial caster wheels

Product Description

EDL‌ Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A

The EDL Medium Duty 5-inch Aluminum Core Caster 665P-86A is engineered for high-performance mobility and durability, supporting up to 300kg. The yellow TPU wheel offers excellent elasticity, abrasion resistance, and shock absorption, reducing floor wear while ensuring smooth and quiet movement. Its aluminum alloy core enhances strength, impact resistance, and load stability, making it ideal for heavy-duty industrial and commercial applications. Designed to withstand temperatures from -30°C to 80°C, this caster performs reliably in various demanding environments. The 92A hardness rating ensures a perfect balance between flexibility and durability, while the 4mm reinforced plate increases structural integrity. Featuring a dual-bearing system, it enables effortless maneuverability under heavy loads. Equipped with both dual brake and side brake options, it provides secure positioning and precise control. Whether for warehouses, machinery, or industrial trolleys, this caster delivers exceptional load capacity, long-lasting reliability, and seamless mobility.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

665-86A

125mm

38mm

46mm

300Kg

Aluminum

TPU

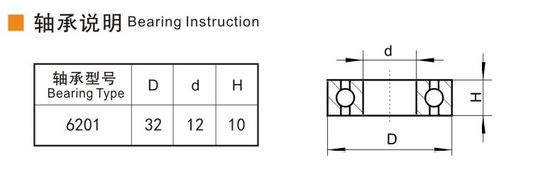

Double ball

bearing 6201

-30℃～80℃

92A

EDL‌ Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A 0

EDL‌ Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A 2

EDL‌ Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A 4

EDL‌ Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A 6

EDL‌ Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A 8

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL‌ Medium Duty 5inch Aluminum Caster Plate by Rigid , Swivel and Brake Type 300kg 665P-86A 9
