EDL‌ Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg

Name: EDL Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 664P-76
Availability: InStock

Brand Name:	EDL
Model Number:	664P-76
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

4inch(100mm)

Dynamic Load:

200kg

Tread Material:

TPE

Core Material:

Mounting Type:

Rigid/Swivel/Brake

Mounting Height:

138mm

Frame Material:

Hot-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

4mm

Bracket Thickness:

3mm

Bracket Width:

46mm

Wheel Width:

38mm

Bearing:

Double Ball Bearing

Tread Color:

Grey

Applicable Temperature:

-30℃～70℃

Tread Hardness:

80A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

tpe industrial caster wheels

tpe industrial heavy duty caster wheels

medium duty industrial caster wheels

Product Description

EDL‌ Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg 664P-56

The EDL Medium Duty 4-inch TPE Plate Caster 664P-56 is designed for smooth, quiet, and durable performance, supporting up to 200kg. The soft gray TPE wheel provides excellent shock absorption, noise reduction, and floor protection, making it an ideal choice for medical, office, and industrial settings. With a temperature range of -30°C to 70°C, this caster ensures reliable performance in various environments. The 4mm thick reinforced plate mounting enhances stability and durability, securing the caster for long-term use. Its dual-bearing system allows for effortless movement with reduced rolling resistance, making heavy loads easier to transport. Available with both dual brake and side brake options, this caster provides enhanced control and safety, preventing unwanted movement. Whether for hospital trolleys, warehouse carts, or commercial equipment, this caster delivers a balance of strength, quiet operation, and seamless mobility.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

664-56

100mm

38mm

46mm

200Kg

TPE

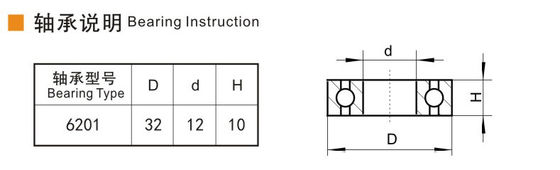

Double ball

bearing 6201

-30℃～70℃

80A

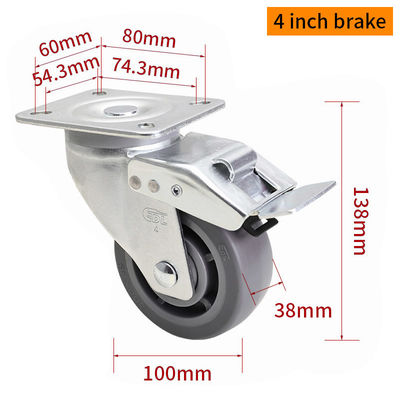

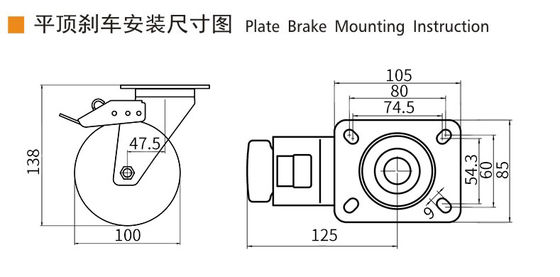

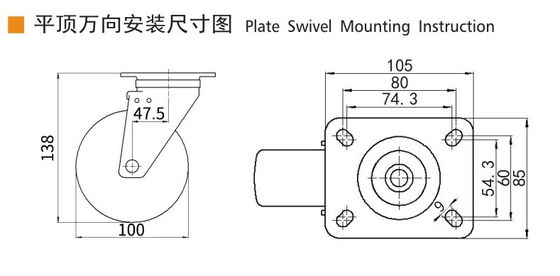

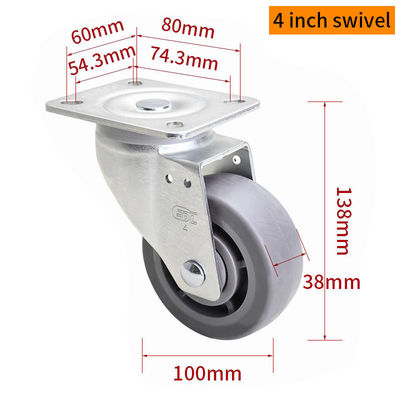

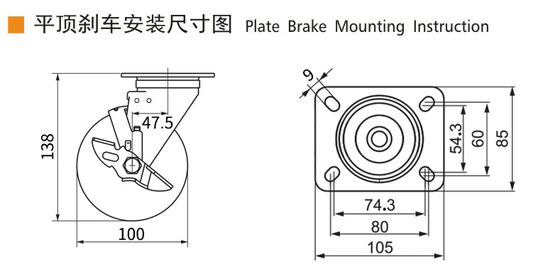

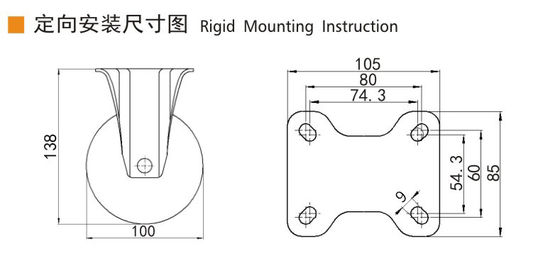

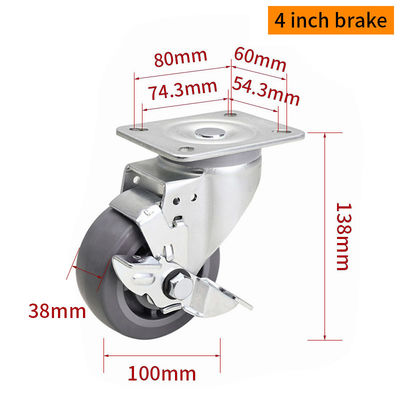

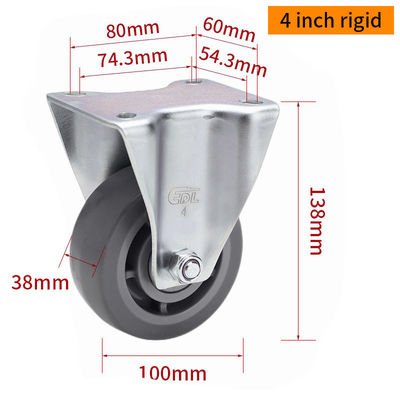

EDL‌ Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg 0

EDL‌ Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg 2

EDL‌ Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg 4

EDL‌ Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg 6

EDL‌ Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg 8

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL‌ Medium Duty 4inch Caster TPE Plate by Rigid , Swivel and Brake Type 200kg 9
