EDL‌ Medium Duty 6inch Caster TPU Plate by Rigid , Swivel and Brake Type 250kg

Name: EDL Medium Duty 6inch Caster TPU Plate by Rigid , Swivel and Brake Type 250kg
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 666P-76
Availability: InStock

Brand Name:	EDL
Model Number:	666P-76
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

6inch(150mm)

Dynamic Load:

250kg

Tread Material:

TPU

Core Material:

Mounting Type:

Rigid/Swivel/Brake

Mounting Height:

191mm

Frame Material:

Hot-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

4mm

Bracket Thickness:

3mm

Bracket Width:

46mm

Wheel Width:

38mm

Bearing:

Double Ball Bearing

Tread Color:

Grey

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

medium duty industrial caster wheels

medium duty industrial heavy duty caster wheels

grey industrial caster wheels

Product Description

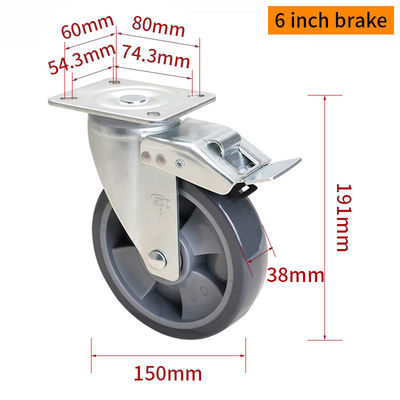

EDL‌ Medium Duty 6inch Caster TPU Plate by Rigid , Swivel and Brake Type 250kg 666P-76

The EDL Medium Duty 6-inch TPU Plate Caster 666P-76 is designed for heavy-duty applications, offering smooth maneuverability and supporting up to 250kg. The large 6-inch gray TPU wheel provides excellent shock absorption, wear resistance, and quiet operation, making it ideal for industrial, medical, and commercial environments. Its temperature range of -20°C to 80°C ensures reliable performance in various conditions. The reinforced 4mm thick plate mounting enhances stability and durability, ensuring a secure and long-lasting installation. Featuring a high-precision dual-bearing system, this caster allows effortless rolling with reduced resistance, even under heavy loads. It is available with both dual brake and side brake options, providing enhanced safety and control to prevent unwanted movement. With its larger 6-inch size, this caster is perfect for applications requiring higher ground clearance and smoother navigation, such as warehouse trolleys, medical carts, and industrial equipment.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

666-76

150mm

38mm

46mm

250Kg

TPU

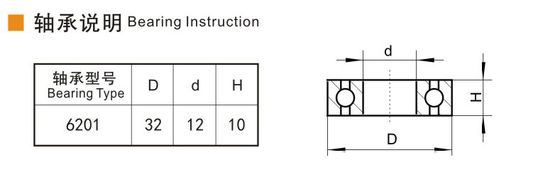

Double ball

bearing 6201

-20℃～80℃

95A

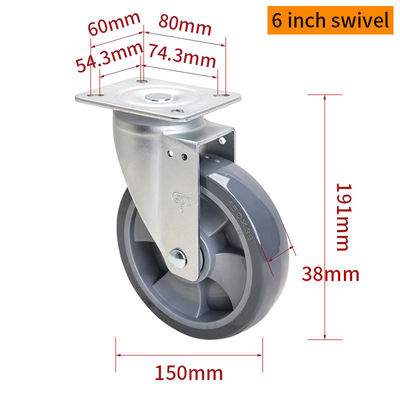

EDL‌ Medium Duty 6inch Caster TPU Plate by Rigid , Swivel and Brake Type 250kg 0

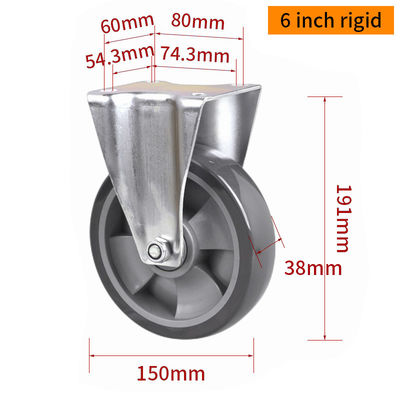

EDL‌ Medium Duty 6inch Caster TPU Plate by Rigid , Swivel and Brake Type 250kg 2

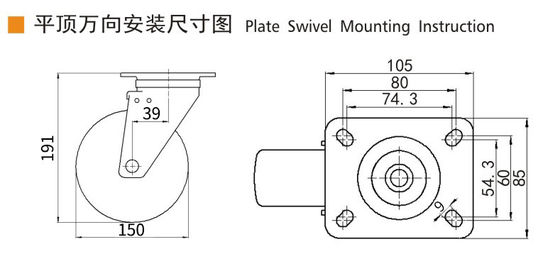

EDL‌ Medium Duty 6inch Caster TPU Plate by Rigid , Swivel and Brake Type 250kg 4

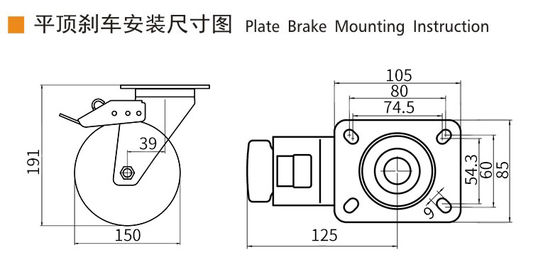

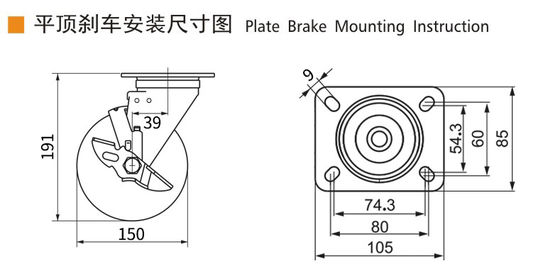

EDL‌ Medium Duty 6inch Caster TPU Plate by Rigid , Swivel and Brake Type 250kg 8

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

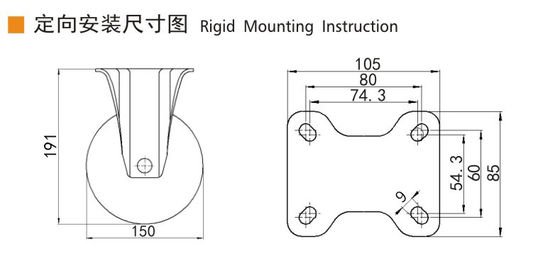

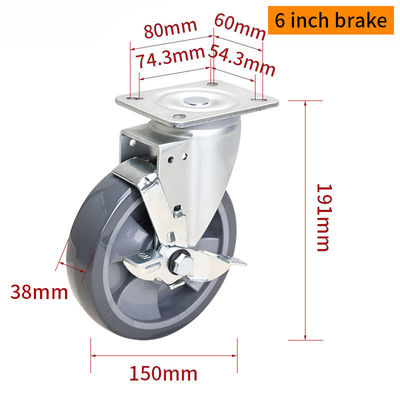

EDL‌ Medium Duty 6inch Caster TPU Plate by Rigid , Swivel and Brake Type 250kg 9
