EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A

Name: EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 665S-86A
Availability: InStock

Brand Name:	EDL
Model Number:	665S-86A
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

5inch(125mm)

Dynamic Load:

300kg

Tread Material:

TPU

Core Material:

Aluminum

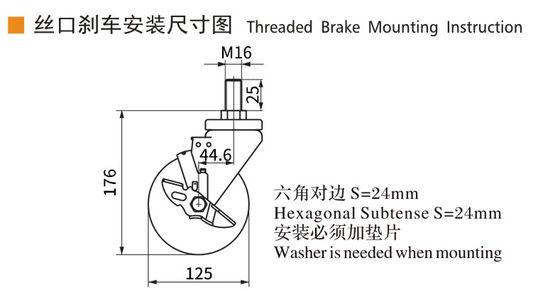

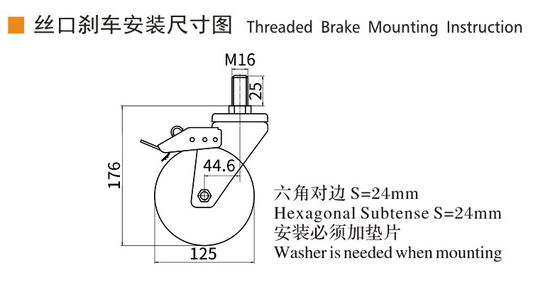

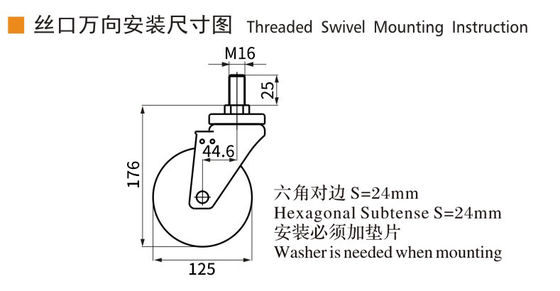

Standard Threaded:

M16×25

Mounting Type:

Swivel/Brake

Mounting Height:

176mm

Frame Material:

Hot-Rolled Plate

Surface Treatment:

Zinc Coating

Bracket Thickness:

3mm

Bracket Width:

46mm

Wheel Width:

38mm

Bearing:

Double Ball Bearing

Tread Color:

Yellow

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

300kg industrial caster wheels

300kg industrial heavy duty caster wheels

threaded industrial caster wheels

Product Description

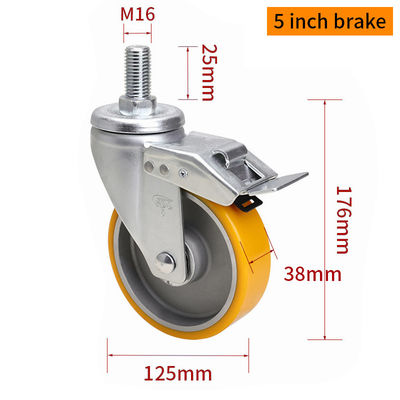

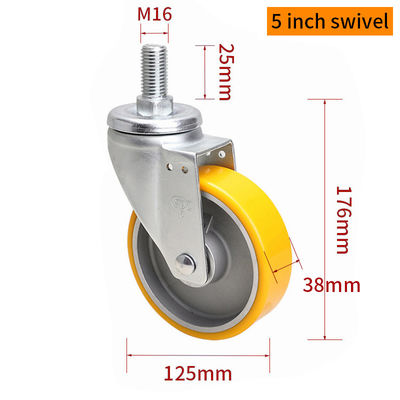

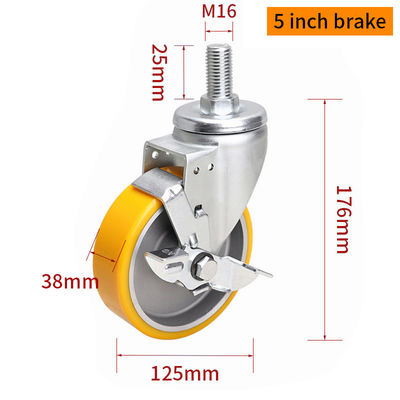

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A

The EDL Medium Duty 5-inch Threaded Aluminum Caster 665S-86A is built for high-load applications, supporting up to 300kg with exceptional durability and smooth mobility. The yellow TPU tread offers excellent shock absorption, noise reduction, and floor protection, making it perfect for industrial, medical, and commercial environments. The aluminum alloy wheel core ensures high strength, wear resistance, and long service life, preventing deformation under heavy loads. Designed with a threaded stem installation, this caster allows secure and easy mounting, while the reinforced 3mm thick bracket enhances overall stability and load-bearing capacity. The dual-bearing system ensures effortless movement and reduced rolling resistance, making transport smooth even with maximum loads. Equipped with both dual brake and side brake options, it provides secure locking and precise control, ensuring safety in dynamic working environments. Whether for heavy-duty carts, machinery, or mobile equipment, this caster delivers strength, reliability, and superior maneuverability in every use.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

665-86A

125mm

38mm

46mm

300Kg

Aluminum

TPU

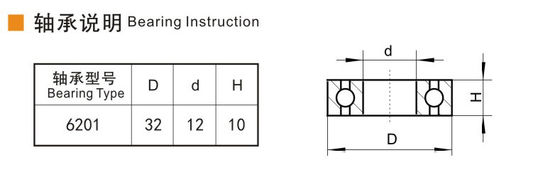

Double ball

bearing 6201

-30℃～80℃

92A

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A 0

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A 2

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty Aluminum Caster 5inch 300kg Threaded by Swivel and Brake type 665S-86A 7
