EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A

Name: EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 664S-86A
Availability: InStock

Brand Name:	EDL
Model Number:	664S-86A
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

4inch(100mm)

Dynamic Load:

300kg

Tread Material:

TPU

Core Material:

Aluminum

Standard Threaded:

M16×25

Mounting Type:

Swivel/Brake

Mounting Height:

148mm

Frame Material:

Hot-Rolled Plate

Surface Treatment:

Zinc Coating

Bracket Thickness:

3mm

Bracket Width:

46mm

Wheel Width:

38mm

Bearing:

Double Ball Bearing

Tread Color:

Yellow

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

300kg industrial caster wheels

300kg industrial heavy duty caster wheels

threaded industrial caster wheels

Product Description

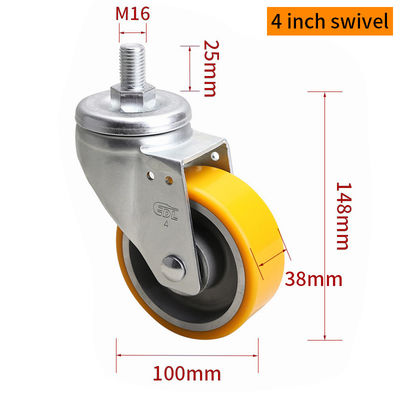

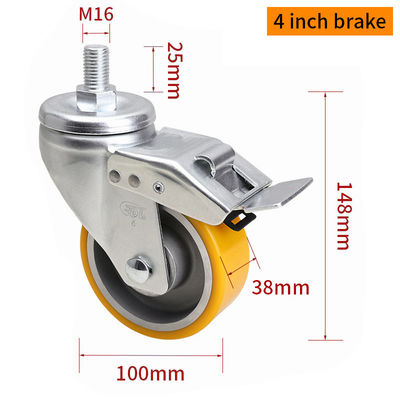

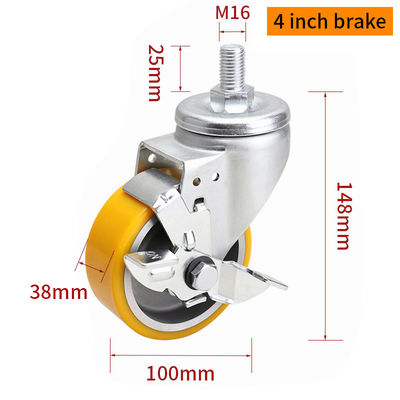

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A

The EDL Medium Duty 4-inch Threaded Aluminum Caster 664S-86A is designed for heavy-duty performance, supporting up to 300kg with exceptional durability. The yellow TPU tread provides superior shock absorption, floor protection, and quiet operation, making it ideal for sensitive environments like warehouses, medical facilities, and commercial spaces. Its aluminum alloy wheel core enhances strength and longevity, ensuring resistance to deformation even under heavy loads. The threaded stem installation offers secure and easy mounting, while the reinforced 3mm thick bracket provides enhanced stability and load capacity. The precision dual-bearing system ensures smooth and effortless movement, reducing push force even when carrying heavy loads. With both dual brake and side brake options, users can lock the wheel securely for added safety and control. This caster is ideal for demanding applications, combining strength, noise reduction, and seamless maneuverability in one compact design.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

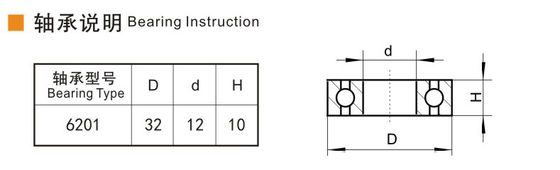

Bearing

Applicable

Temperature

Hardness

664-86A

100mm

38mm

46mm

300Kg

Aluminum

TPU

Double ball

bearing 6201

-30℃～80℃

92A

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A 0

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A 2

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty Aluminum Caster 4inch 300kg Threaded by Swivel and Brake type 664S-86A 7
