EDL Medium Duty Zinc Coating 6inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77

Name: EDL Medium Duty Zinc Coating 6inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 5716P-77
Availability: InStock

Brand Name:	EDL
Model Number:	5716P-77
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

6inch(150mm)

Dynamic Load:

130kg

Core Material:

Tread Material:

TPU

Mounting Type:

Rigid/Swivel / Brake

Mounting Height:

186mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

3mm

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

31mm

Bearing:

Single Ball Bearing

Tread Color:

Grey

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

medium duty industrial caster wheels

medium duty industrial heavy duty caster wheels

zinc coating industrial caster wheels

Product Description

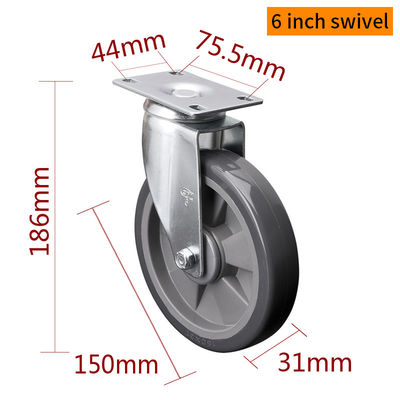

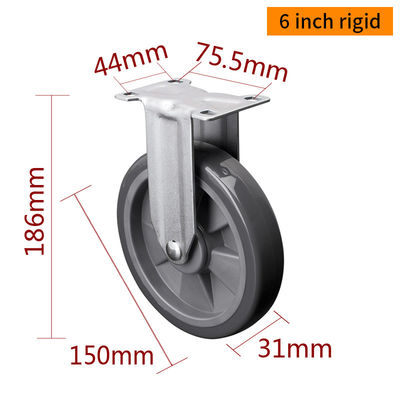

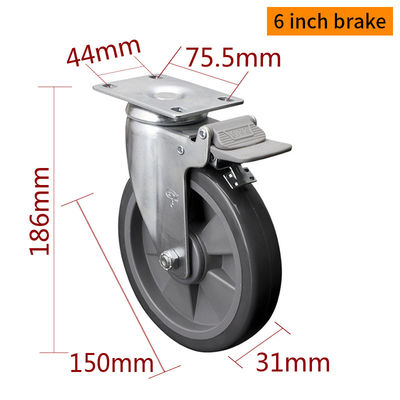

EDL Medium Duty Zinc Coating 6inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77

The EDL Medium Duty Zinc Coating 6-inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77 is designed with high-quality gray TPU material, renowned for its exceptional durability and wear resistance. TPU offers outstanding elasticity, which helps absorb shocks and minimize vibrations, protecting floors from damage. This material provides superior load-bearing capacity compared to TPE, making it ideal for applications involving higher loads or more demanding environments. The caster features a single ball bearing for smooth and easy rolling, while the 3mm thick plate mounting system ensures secure installation for medium-duty equipment. The plastic dual brake system offers reliable stopping power, and the zinc-coated bracket increases corrosion resistance, ensuring longevity even in harsh conditions.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

5716-77

150mm

31mm

41mm

130Kg

TPU

Single ball

bearing 6002

-20℃～80℃

95A

EDL Medium Duty Zinc Coating 6inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77 0

EDL Medium Duty Zinc Coating 6inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77 2

EDL Medium Duty Zinc Coating 6inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77 4

EDL Medium Duty Zinc Coating 6inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty Zinc Coating 6inch 130kg Plate TPU Caster by Rigid, Swivel and Brake type 5716P-77 7
