EDL Medium Duty 5inch 150kg Threaded TPU Caster by Swivel and Brake type 505S-76

Name: EDL Medium Duty 5inch 150kg Threaded TPU Caster by Swivel and Brake type 505S-76
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 505S-76
Availability: InStock

Brand Name:	EDL
Model Number:	505S-76
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

5inch(125mm)

Dynamic Load:

150kg

Core Meterial:

Tread Material:

TPU

Mounting Type:

Swivel / Brake

Standard Threaded:

M16×25

Mounting Height:

169mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Double Ball Bearings

Tread Color:

Grey

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

threaded industrial caster wheels

threaded industrial heavy duty caster wheels

medium duty industrial caster wheels

Product Description

EDL Medium Duty 5inch 150kg Threaded TPU Caster by Swivel and Brake type 505S-76

The EDL Medium Duty 5-inch 150kg Gray TPU Threaded Caster 505S-76 is crafted from high-quality TPU material, offering excellent wear resistance and resilience for smooth and quiet mobility while minimizing floor damage. The non-marking gray tread is suitable for various surfaces. Dual ball bearings enhance rolling performance, reducing friction and improving durability. The threaded stem installation provides a secure fit, ensuring quick and easy setup. With a 5-inch wheel diameter, it offers superior maneuverability and load capacity, making it ideal for medium-duty applications. Equipped with both a pedal brake and an iron dual brake system, it delivers enhanced safety and stability for diverse operational needs.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

505-76

125mm

32mm

41mm

150Kg

TPU

Double ball

bearing 6001

-20℃～80℃

95A

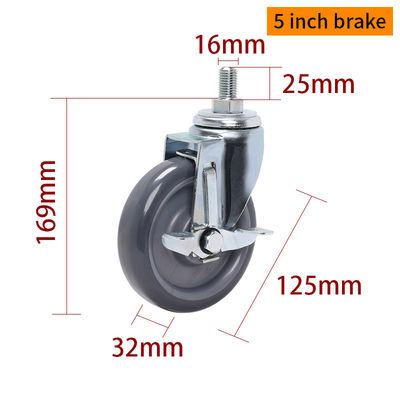

EDL Medium Duty 5inch 150kg Threaded TPU Caster by Swivel and Brake type 505S-76 0

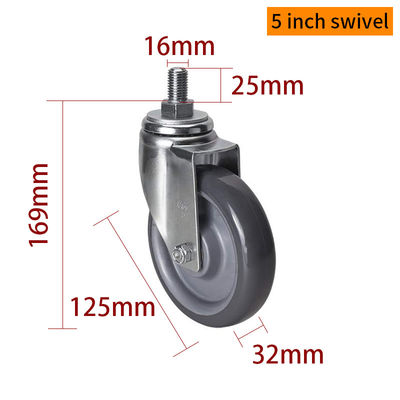

EDL Medium Duty 5inch 150kg Threaded TPU Caster by Swivel and Brake type 505S-76 2

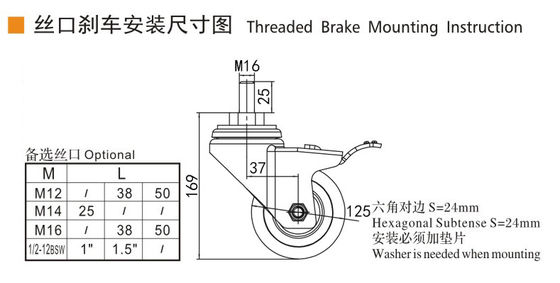

EDL Medium Duty 5inch 150kg Threaded TPU Caster by Swivel and Brake type 505S-76 4

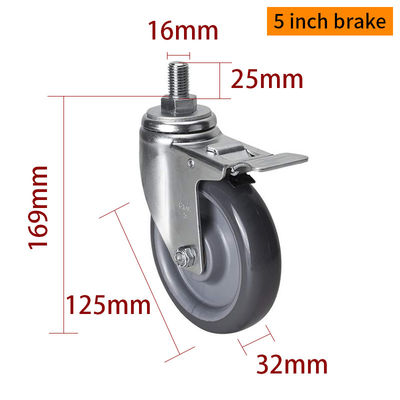

EDL Medium Duty 5inch 150kg Threaded TPU Caster by Swivel and Brake type 505S-76 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty 5inch 150kg Threaded TPU Caster by Swivel and Brake type 505S-76 7
