EDL Medium Duty 3inch 150kg Red TPU Threaded Caster by Swivel and Brake type 503S-86

Name: EDL Medium Duty 3inch 150kg Red TPU Threaded Caster by Swivel and Brake type 503S-86
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 503S-86
Availability: InStock

Brand Name:	EDL
Model Number:	503S-86
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

3inch(75mm)

Dynamic Load:

150kg

Core Material:

Tread Material:

TPU

Mounting Type:

Swivel / Brake

Standard Threaded:

M12×25

Mounting Height:

117mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Double Ball Bearings

Tread Color:

Red

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

threaded industrial caster wheels

threaded industrial heavy duty caster wheels

medium duty industrial caster wheels

Product Description

EDL Medium Duty 3inch 150kg Red TPU Threaded Caster by Swivel and Brake type 503S-86

The EDL Medium Duty 3-inch 150kg Threaded TPU Caster 503S-86 is made from high-quality TPU material, offering excellent wear resistance, impact resistance, and quiet operation, making it ideal for various industrial and commercial applications. The vibrant red color enhances visibility, while the TPU material ensures durability and minimizes floor damage. Equipped with dual ball bearings, it provides smooth and effortless rolling, reducing friction and extending service life. With a 150kg load capacity, this caster is perfect for medium-duty equipment. The threaded installation method ensures a secure and firm attachment, allowing for easy and stable setup. Featuring both a side wheel brake and an iron dual brake, this caster offers reliable locking options for enhanced safety during use.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

503-86

75mm

32mm

41mm

150Kg

TPU

Double ball

bearing 6001

-30℃～80℃

95A

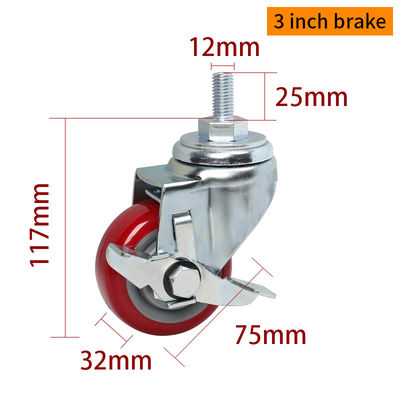

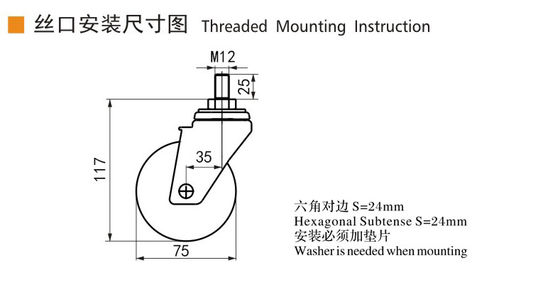

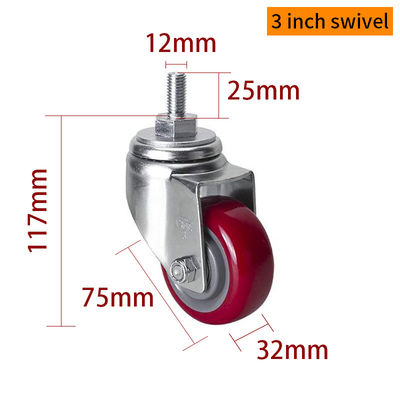

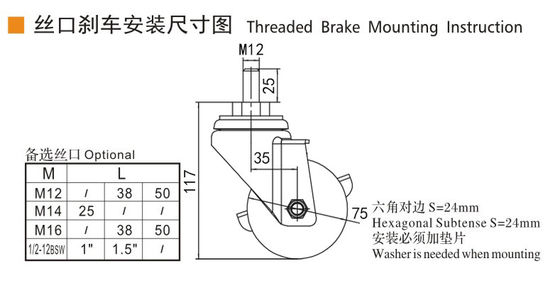

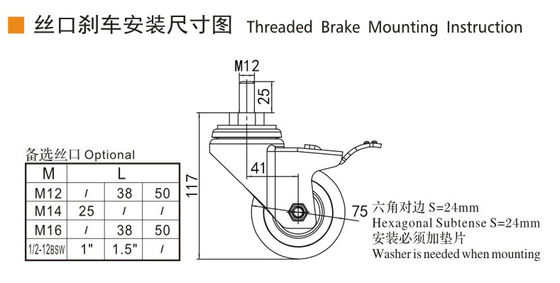

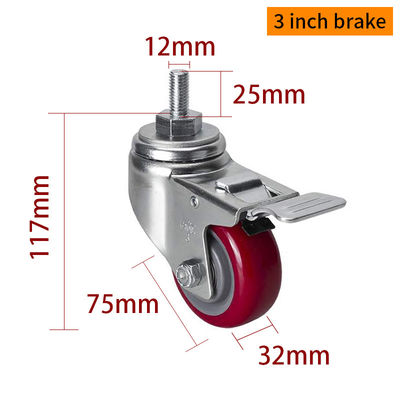

EDL Medium Duty 3inch 150kg Red TPU Threaded Caster by Swivel and Brake type 503S-86 0

EDL Medium Duty 3inch 150kg Red TPU Threaded Caster by Swivel and Brake type 503S-86 2

EDL Medium Duty 3inch 150kg Red TPU Threaded Caster by Swivel and Brake type 503S-86 4

EDL Medium Duty 3inch 150kg Red TPU Threaded Caster by Swivel and Brake type 503S-86 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty 3inch 150kg Red TPU Threaded Caster by Swivel and Brake type 503S-86 7
