EDL Medium Duty 3inch 150kg Yellow TPU Threaded Caster by Swivel and Brake type 503S-86A

Name: EDL Medium Duty 3inch 150kg Yellow TPU Threaded Caster by Swivel and Brake type 503S-86A
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 503S-86A
Availability: InStock

Brand Name:	EDL
Model Number:	503S-86A
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

3inch(75mm)

Dynamic Load:

150kg

Core Material:

Aluminum

Tread Material:

TPU

Mounting Type:

Swivel / Brake

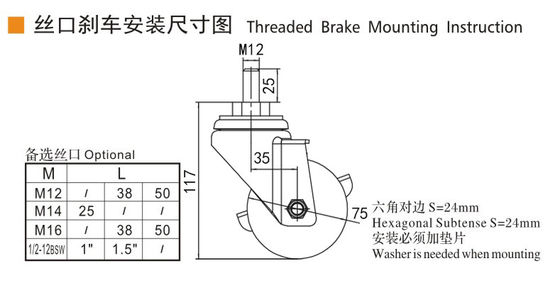

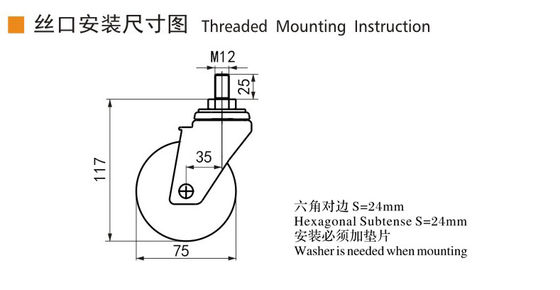

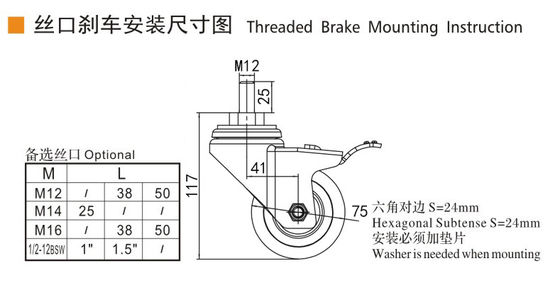

Standard Threaded:

M12×25

Mounting Height:

117mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Double Ball Bearings

Tread Color:

Yellow

Applicable Temperature:

-20℃～80℃

Tread Hardness:

92A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

threaded industrial caster wheels

threaded industrial heavy duty caster wheels

medium duty industrial caster wheels

Product Description

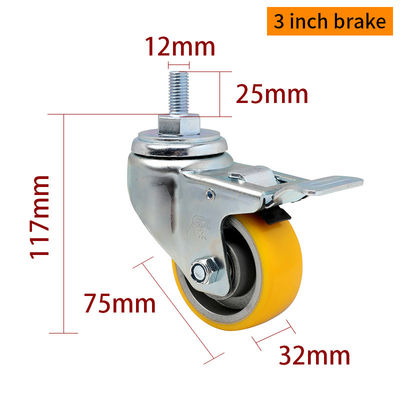

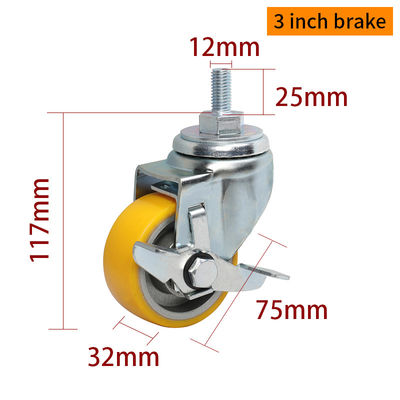

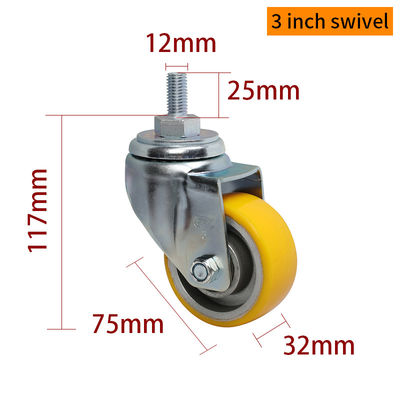

EDL Medium Duty 3inch 150kg Yellow TPU Threaded Caster by Swivel and Brake type 503S-86A

The EDL Medium Duty 3-inch 150kg Threaded TPU Caster 503S-86A features a combination of durable TPU material and a strong aluminum alloy core, providing a sturdy yet lightweight solution. The bright yellow color adds a professional and visible touch to industrial applications. The aluminum alloy core significantly enhances the caster’s strength and durability while reducing overall weight, ensuring optimal performance under medium-duty loads. Dual ball bearings provide smooth, efficient movement and reduce friction, extending the caster’s lifespan. With a 150kg load capacity, it is ideal for medium-duty equipment. The threaded installation method simplifies the setup process, ensuring a secure and stable fit. Offering two braking options—side wheel brake and iron dual brake—this caster ensures secure locking when stationary, enhancing overall safety in industrial environments.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

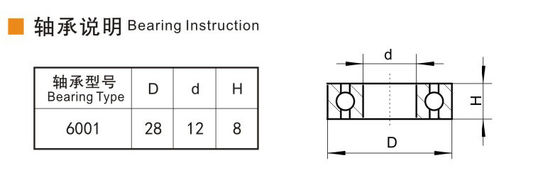

Bearing

Applicable

Temperature

Hardness

503-86A

75mm

32mm

41mm

150Kg

Aluminum

TPU

Double ball

bearing 6001

-30℃～80℃

92A

EDL Medium Duty 3inch 150kg Yellow TPU Threaded Caster by Swivel and Brake type 503S-86A 0

EDL Medium Duty 3inch 150kg Yellow TPU Threaded Caster by Swivel and Brake type 503S-86A 2

EDL Medium Duty 3inch 150kg Yellow TPU Threaded Caster by Swivel and Brake type 503S-86A 4

EDL Medium Duty 3inch 150kg Yellow TPU Threaded Caster by Swivel and Brake type 503S-86A 6

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty 3inch 150kg Yellow TPU Threaded Caster by Swivel and Brake type 503S-86A 7
