EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

Name: EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 505P-86
Availability: InStock

Brand Name:	EDL
Model Number:	505P-86
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

5inch(125mm)

Dynamic Load:

150kg

Core Material:

Tread Material:

TPU

Mounting Type:

Rigid/Swivel / Brake

Mounting Height:

160mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

4mm

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Double Ball Bearings

Tread Color:

Red

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

medium duty industrial caster wheels

medium duty industrial heavy duty caster wheels

125mm industrial caster wheels

Product Description

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 505P-86

The EDL Medium Duty 5-inch 150kg Plate TPU Caster 505P-86 features high-quality TPU material, offering excellent wear resistance, quiet operation, and impact absorption to minimize floor damage. Its bright red color enhances visibility and safety. Equipped with dual ball bearings, it ensures smooth and stable rolling for effortless mobility. The 5-inch wheel size provides improved ground clearance and stability, making it ideal for industrial and commercial applications. The sturdy plate mounting system allows for quick and secure attachment, ensuring equipment remains stable during use. Available in both rigid and swivel types, it includes side brake and iron dual brake options for versatile stopping control.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

505-86

125 mm

32mm

41mm

150Kg

TPU

Double ball

bearing 6001

-20℃～80℃

95A

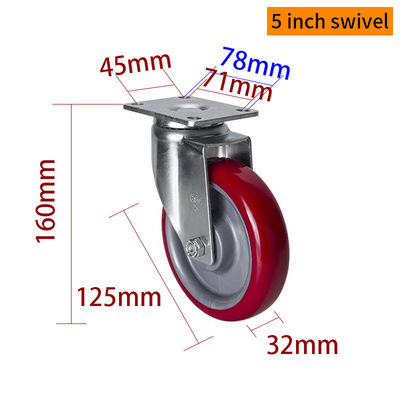

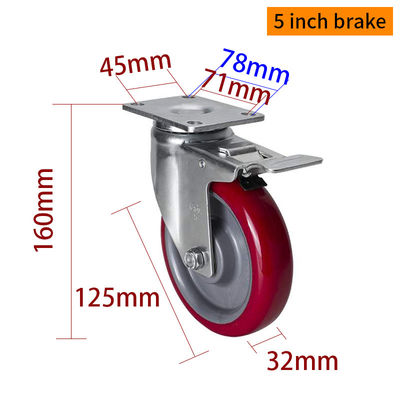

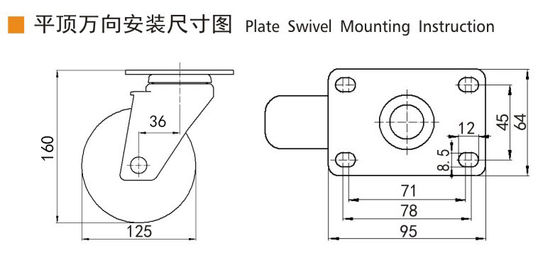

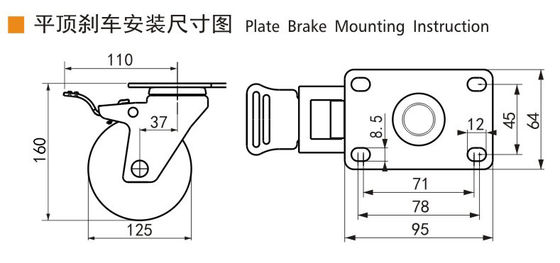

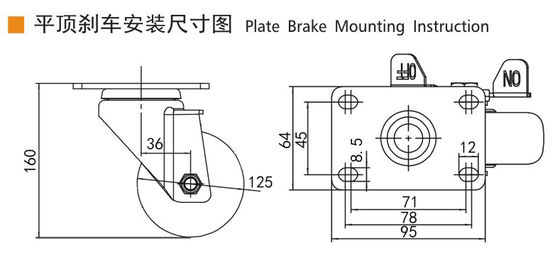

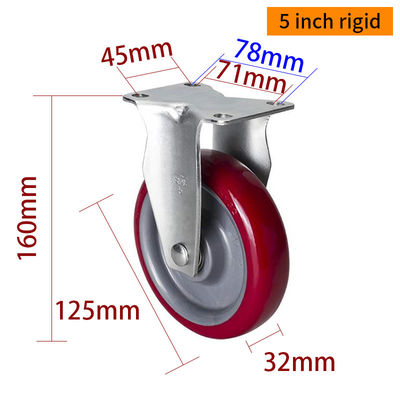

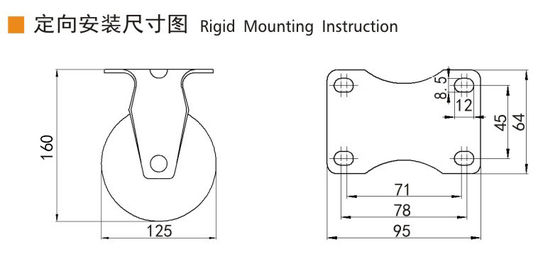

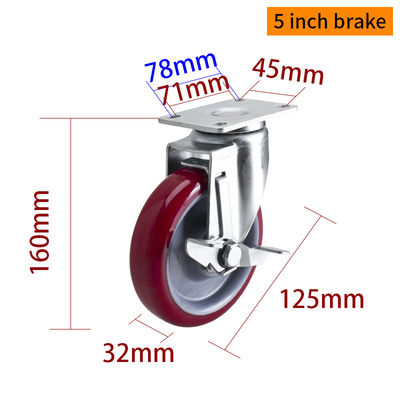

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 0

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 2

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 4

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 6

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 8

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 9
