EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

Name: EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 505P-86A
Availability: InStock

Brand Name:	EDL
Model Number:	505P-86A
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

5inch(125mm)

Dynamic Load:

150kg

Tread Material:

TPU

Core Material:

Aluminum

Mounting Type:

Rigid/Swivel / Brake

Mounting Height:

160mm

Plate Thickness:

4mm

Bracket Thickness:

2.5mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Double Ball Bearings

Tread Color:

Yellow

Applicable Temperature:

-20℃～80℃

Tread Hardness:

92A

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

medium duty industrial caster wheels

medium duty industrial heavy duty caster wheels

125mm industrial caster wheels

Product Description

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 505P-86A

The EDL Medium Duty 5-inch 150kg Plate TPU Caster 505P-86A is crafted from high-durability TPU, offering superior shock absorption, wear resistance, and quiet rolling to minimize floor damage. Its aluminum alloy wheel core is both lightweight and robust, enhancing load capacity and longevity. The dual ball bearings ensure smooth and flexible movement for effortless mobility. With a 5-inch diameter, this caster provides improved stability and maneuverability, supporting up to 150kg, making it ideal for industrial and commercial applications. The sturdy plate mounting allows secure installation, available in both rigid and swivel options, with side brake and iron dual brake configurations for versatile braking needs. The bright yellow color enhances visibility for safety. Designed with premium materials and precision engineering.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

505-86A

125mm

32mm

41mm

150Kg

Aluminum

TPU

Double ball

bearing 6001

-30℃～80℃

92A

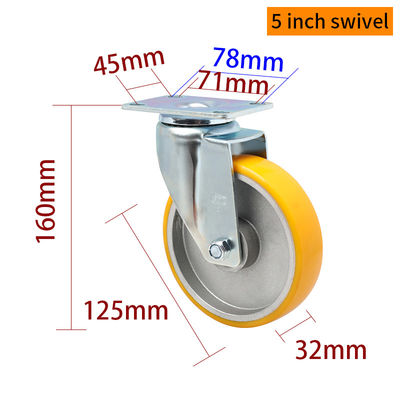

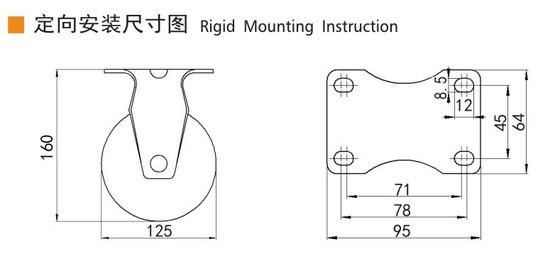

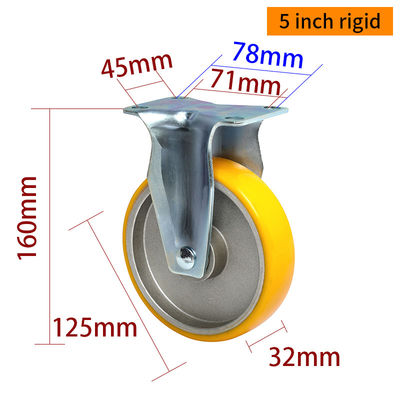

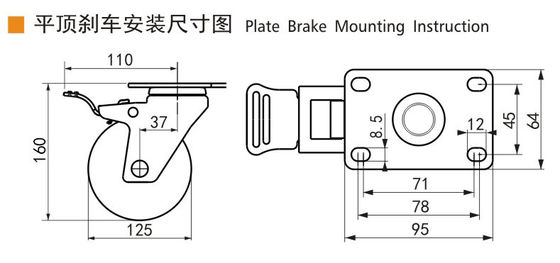

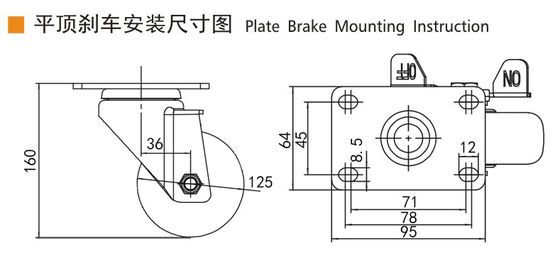

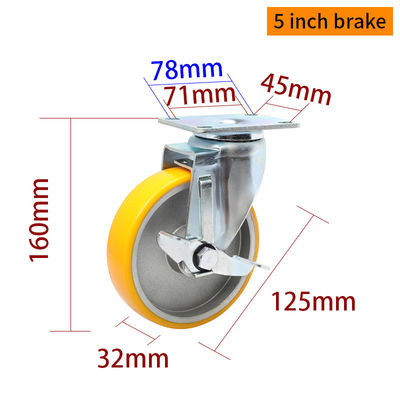

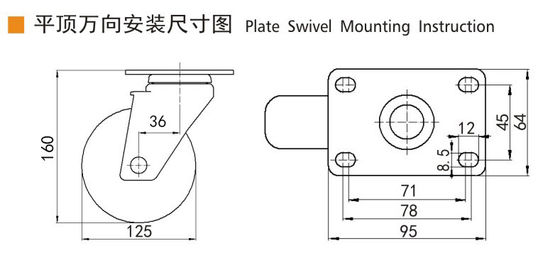

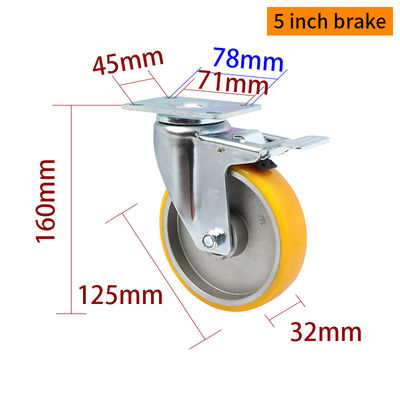

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 0

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 2

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 4

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 6

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 8

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Medium Duty 5inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 9
