EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type

Name: EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 503P-26
Availability: InStock

Brand Name:	EDL
Model Number:	503P-26
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

3inch(75mm)

Dynamic Load:

150kg

Core Material:

Tread Material:

TPA

Mounting Type:

Rigid/Swivel / Brake

Mounting Height:

108mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

4mm

Bracket Thickness:

2.5mm

Bracket Width:

41mm

Wheel Width:

32mm

Bearing:

Double Ball Bearings

Tread Color:

White

Applicable Temperature:

-20℃～120℃

Tread Hardness:

67D

Name:

Industrial Caster Wheels

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

zinc coating industrial caster wheels

zinc coating industrial heavy duty caster wheels

Product Description

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type 503P-26

EDL Medium Duty 3inch 150kg Plate TPA Caster 503P-26 is expertly crafted by EDL Casters, offering both strength and reliability. With a 3-inch diameter, this caster is compact yet powerful, supporting up to 150kg, making it ideal for medium-duty industrial carts, trolleys, and mobile platforms. Made from high-hardness TPA (thermoplastic elastomer), it delivers exceptional wear resistance, impact resistance, and durability while ensuring smooth rolling. The sturdy bracket structure enhances stability under load, and the precision design improves mobility efficiency. EDL Casters is dedicated to providing high-performance caster solutions, and this model exemplifies our commitment to innovation and superior craftsmanship.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

503-26

75mm

32mm

41mm

150Kg

TPA

Double ball

bearing 6001

-20℃～120℃

67D

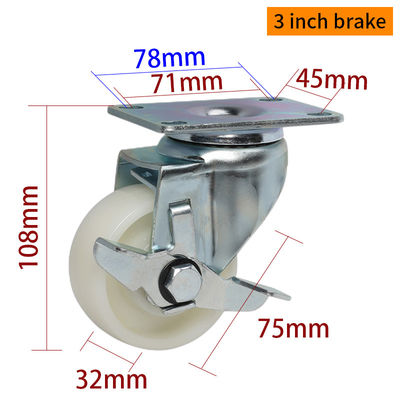

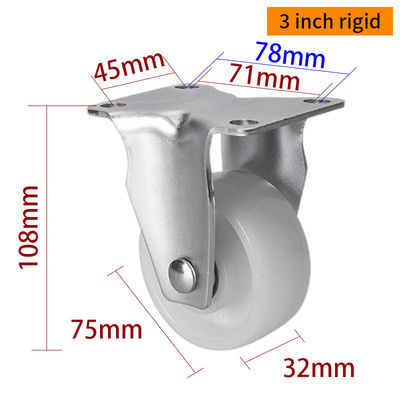

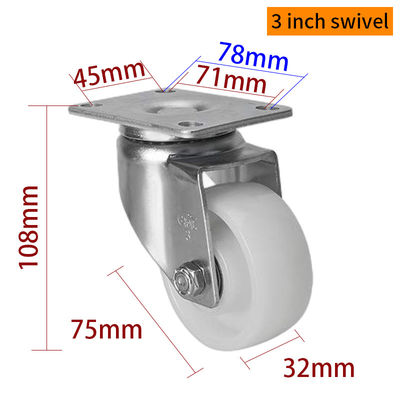

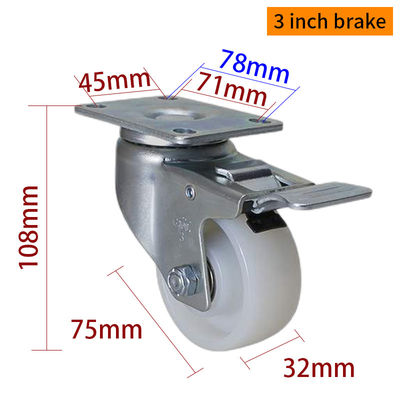

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type 0

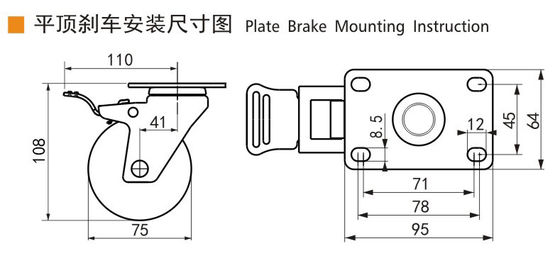

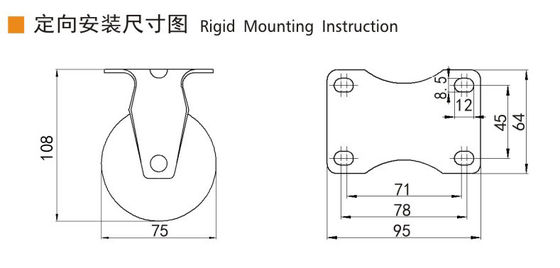

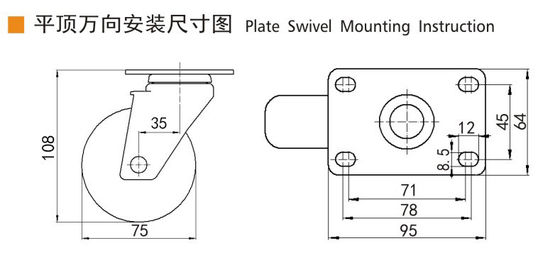

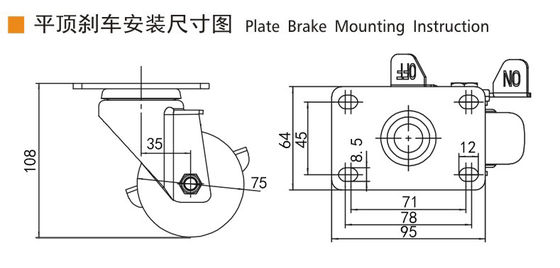

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type 2

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type 4

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type 6

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type 8

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL Industrial Casters 3inch 150kg Plate TPA by Rigid, Swivel and Brake type 9
