EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A

EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A

EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A

Brand Name: EDL
Model Number: 9510-86A
MOQ: 1pcs
Price: Negotiate
Payment Terms: T/T
Supply Ability: 30,000pcs/day
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001, ISO14001, RoHS
Wheel Diameter:
10inch(250mm)
Dynamic Load:
3000kg
Tread Material:
TPU
Core Material:
Aluminum
Mounting Type:
Rigid/Swivel
Mounting Height:
360mm
Frame Material:
Hot-Rolled Plate
Surface Treatment:
Zinc Coating
Plate Thickness:
20mm
Bracket Thickness:
16mm
Bracket Width:
2-91mm
Wheel Width:
75mm
Bearing:
Double Ball Bearings
Tread Color:
Red
Applicable Temperature:
-30℃～80℃
Tread Hardness:
95A
Packaging Details:
Carton
Supply Ability:
30,000pcs/day
Product Description

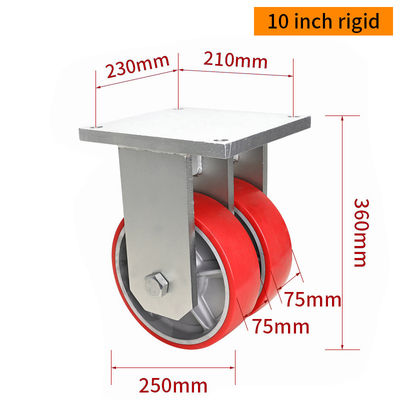

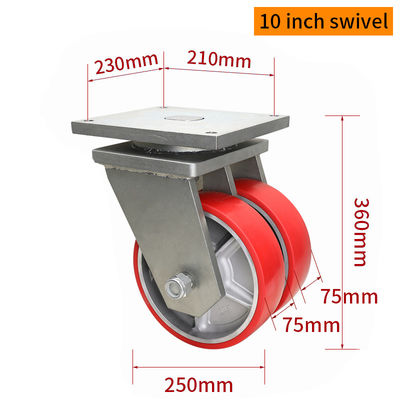

 EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A


The EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster (9510-86A) is built for extreme industrial use. With a 3000kg load capacity per caster, it’s ideal for heavy-duty machinery and transport systems. The wheels are made of durable TPU with a reinforced aluminum alloy core, offering excellent wear resistance, floor protection, and quiet movement.

A 20mm thick top plate and 16mm steel bracket ensure outstanding strength and shock resistance, even under continuous heavy loads. Available in rigid and swivel types, this caster meets various motion control requirements in industries such as aerospace, semiconductor, heavy equipment, and automated production lines. Designed by EDL, it’s a premium solution for reliable and long-lasting mobility.


Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
9510-86A 10" 250mm 75mm 2-91mm 3000Kg Aluminum

TPU

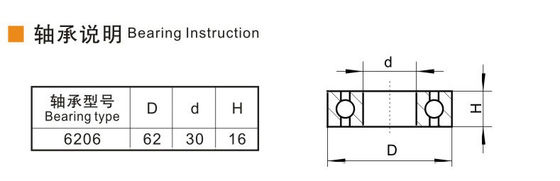

Double ball

bearing 6206

 -30℃～80℃ 95A


EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A 0EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A 1

EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A 2EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A 3

EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A 4

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

EDL 10 Inch 3000kg Ultra Heavy Duty Dual Wheel Caster Plate Rigid Swivel Type 9510-86A 5
