Home Products

Heavy Duty Casters

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26

Name: 450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 738-26
Availability: InStock

Brand Name:	EDL
Model Number:	738-26
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Heavy Duty Castor Wheels With Brake

Wheel Diameter:

8inch(200mm)

Dynamic Load:

450kg

Tread Material:

TPA

Mounting Height:

241mm

Frame Material:

Hot-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

6mm

Bracket Thickness:

5mm

Bracket Width:

61mm

Wheel Width:

50mm

Bearing:

Double Ball Bearings

Tread Color:

White

Applicable Temperature:

-20℃～120℃

Tread Hardness:

67D

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

Heavy Duty 8 Inch Casters

200mm Castor Wheels

Heavy Duty Castor Wheels With Brake

Product Description

EDL Heavy Duty 8inch 450kg Plate TPU Caster by Rigid, Swivel and Brake type 738-26

The EDL Heavy Duty 8-inch 450kg Plate TPU Caster 738-26 is built for exceptional strength and smooth mobility. Its white TPA wheel offers high wear resistance, shock absorption, and floor protection, making it an ideal choice for industrial, logistics, and warehouse applications. The 8-inch wheel size ensures enhanced ground clearance, allowing easy movement over uneven surfaces. With a 6mm thick hot-rolled steel plate, this caster delivers maximum durability and stability under heavy loads. It is available in rigid, swivel, dual brake, wheel brake, side brake, and directional lock configurations, providing versatile and secure operation for different working environments. Designed for silent and effortless maneuverability, this caster ensures long-lasting performance in demanding conditions.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

738-26

200mm

50mm

61mm

450Kg

TPA

Double ball

bearing 6203

-20℃～120℃

67D

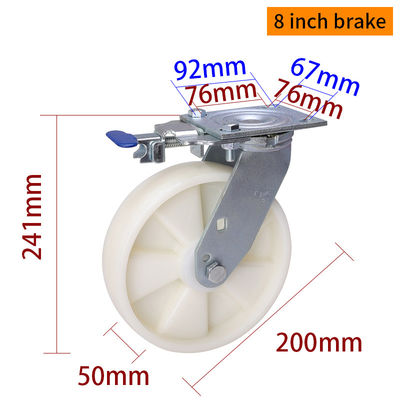

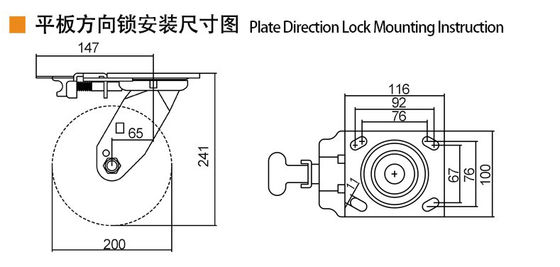

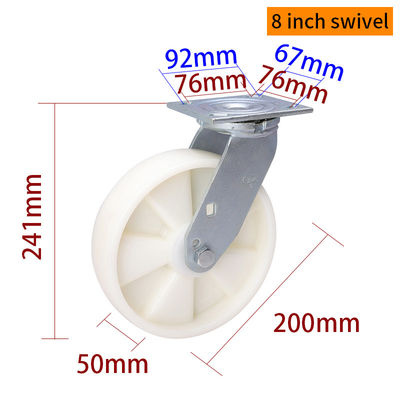

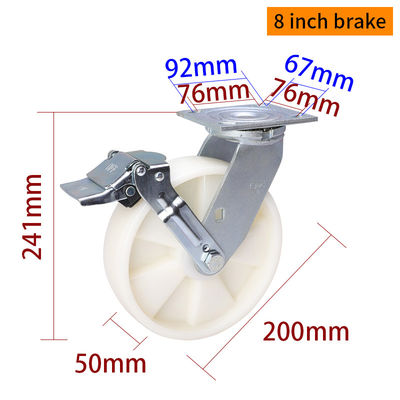

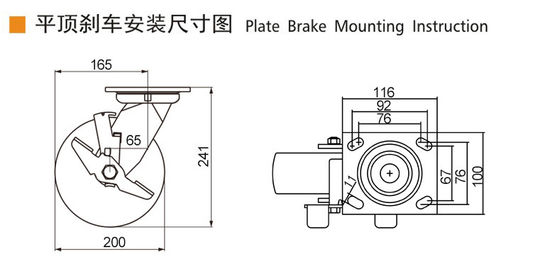

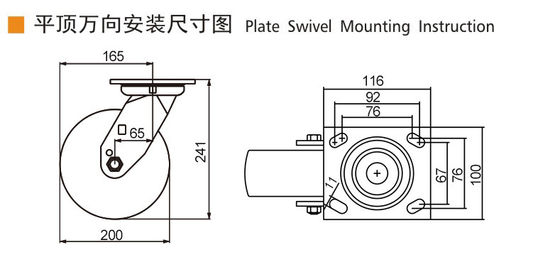

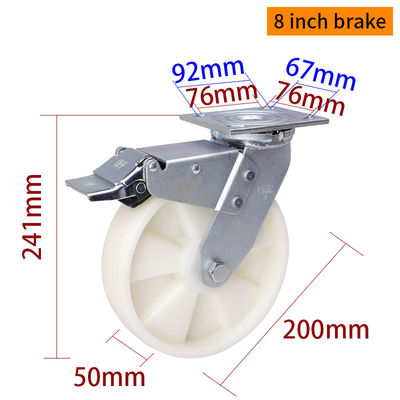

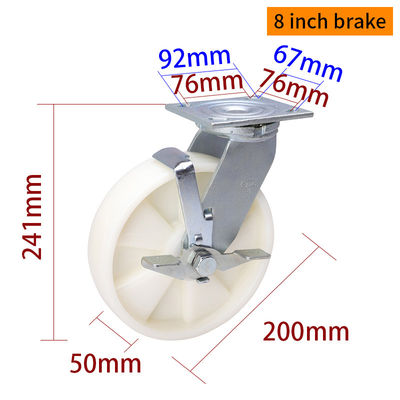

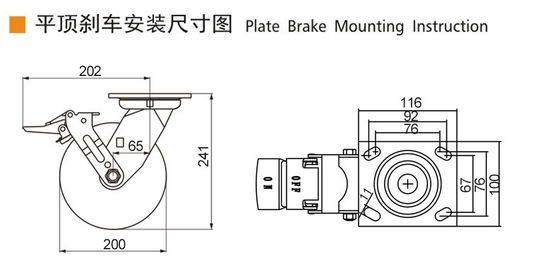

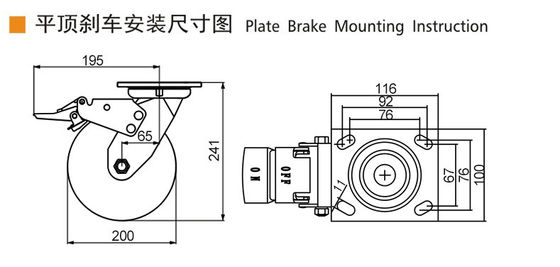

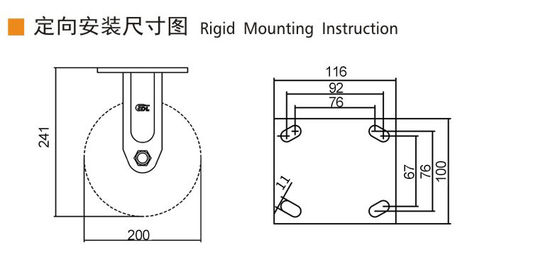

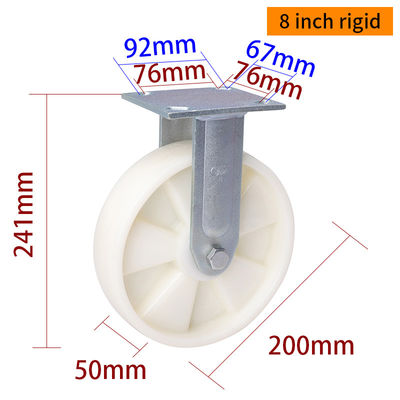

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26 0

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26 2

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26 4

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26 6

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26 8

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26 10

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26 12

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.

450kg Load 8 Inch 200mm Heavy Duty Castor Wheels With Brake 738-26 13
