Home Products

Light Duty Casters

EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type

Name: EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 3625P-86A
Availability: InStock

Brand Name:	EDL
Model Number:	3625P-86A
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

2.5inch(63mm)

Dynamic Load:

80kg

Tread Material:

TPU

Core Material:

Aluminum

Mounting Type:

Rigid/Swivel/Brake

Mounting Height:

89mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

2.5mm

Bracket Thickness:

2mm

Bracket Width:

33mm

Wheel Width:

25mm

Bearing:

Double Ball Bearing

Tread Color:

Grey

Applicable Temperature:

-30℃～80℃

Tread Hardness:

92A

Name:

Light Duty Casters

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

80kg light duty casters

80kg light duty swivel casters

rigid light duty casters

Product Description

EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type 3625P-86A

The EDL 2.5-inch Light Duty Plate Caster 3625P-86A is designed with a premium combination of materials to ensure smooth mobility, durability, and high load capacity. Featuring a yellow TPU tread and a high-strength aluminum alloy wheel core, this caster provides excellent shock absorption, wear resistance, and floor protection while maintaining a lightweight yet sturdy structure. The dual-bearing system enhances rolling efficiency, making movement effortless even under an 80kg load. The 2.5mm thick plate and 2mm thick bracket ensure strong support and long-term reliability, ideal for light industrial carts, medical equipment, and commercial applications. For precise control and enhanced safety, this caster includes both a dual plastic brake and a side wheel brake, allowing for easy stopping and locking. The plate-mounted installation ensures a secure attachment to various equipment, making this EDL caster a versatile and high-performance choice for demanding environments.

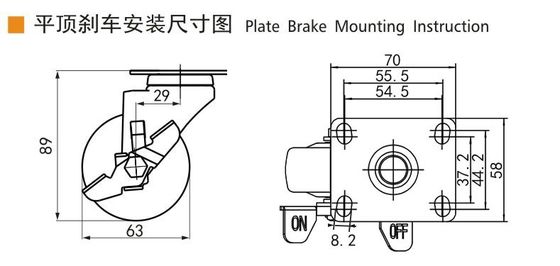

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

3625-86A

2.5"

63mm

25mm

33mm

80KG

Aluminum

TPU

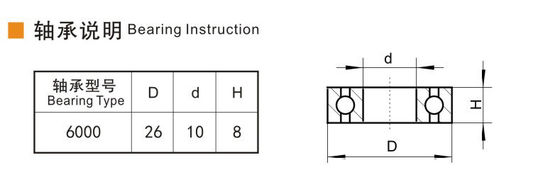

Double ball

bearing 6000

-30℃～80℃

92A

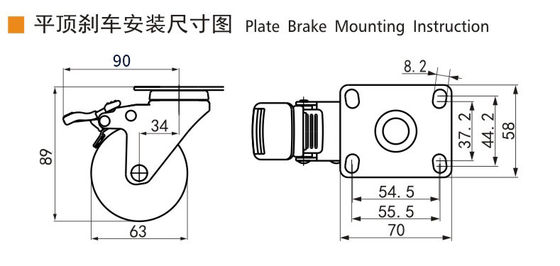

EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type 0

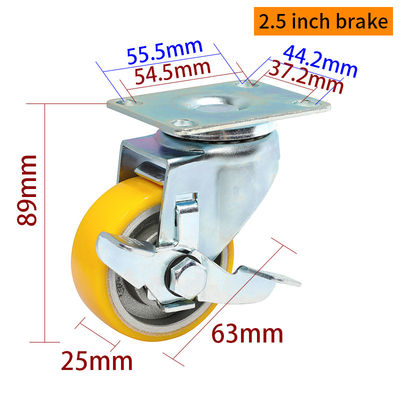

EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type 2

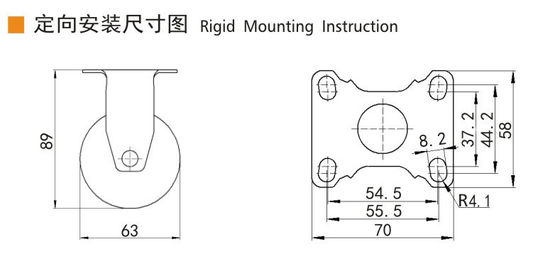

EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type 4

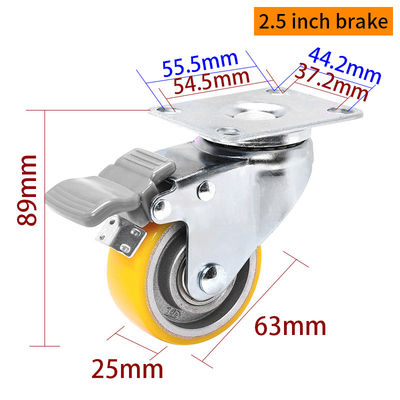

EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type 6

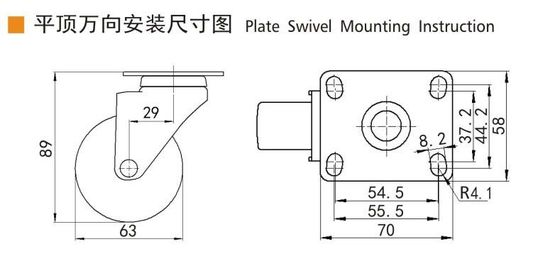

EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type 8

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable

EDL Light Duty 2.5inch 80kg Aluminum Plate Caster by Rigid, Swivel and Brake type 9
