Home Products

Light Duty Casters

EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type

Name: EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: 3625P-76
Availability: InStock

Brand Name:	EDL
Model Number:	3625P-76
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Wheel Diameter:

2.5inch(63mm)

Dynamic Load:

80kg

Tread Material:

TPU

Core Material:

Mounting Type:

Rigid/Swivel/Brake

Mounting Height:

89mm

Frame Material:

Cold-Rolled Plate

Surface Treatment:

Zinc Coating

Plate Thickness:

2.5mm

Bracket Thickness:

2mm

Bracket Width:

33mm

Wheel Width:

25mm

Bearing:

Double Ball Bearing

Tread Color:

Grey

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Name:

Light Duty Casters

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

80kg light duty casters

80kg light duty swivel casters

rigid light duty casters

Product Description

EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type 3625P-76

The EDL 2.5-inch Light Duty Plate TPU Caster 3625P-76 is designed for seamless mobility and enhanced durability, making it an excellent choice for workstations, carts, and lightweight industrial applications. The gray TPU wheel provides low rolling resistance, floor protection, and noise reduction, ensuring smooth and quiet movement. This caster is equipped with a dual-bearing system, which enhances load distribution and reduces friction, resulting in effortless maneuverability and long-lasting performance. The 2.5-inch wheel size supports up to 80kg, offering a balance between compact design and strong weight capacity. The 2.5mm thick plate mount and 2mm thick bracket provide stability and reliability, while the rigid, swivel, and brake options allow for versatile application needs. Featuring both dual plastic brakes and a side wheel brake, this caster offers secure locking and better handling. The plate-mount installation ensures strong attachment to various equipment, making it a dependable choice for smooth and controlled movement.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

3625-76

2.5"

63mm

25mm

33mm

80KG

TPU

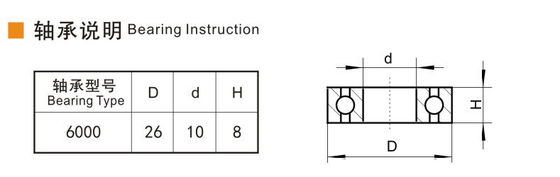

Double ball

bearing 6000

-20℃～80℃

95A

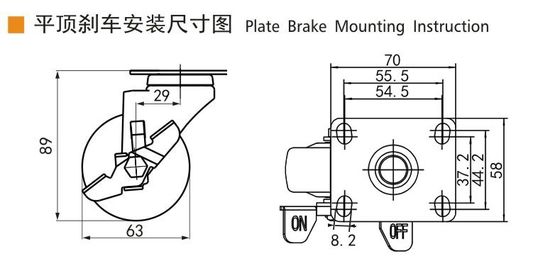

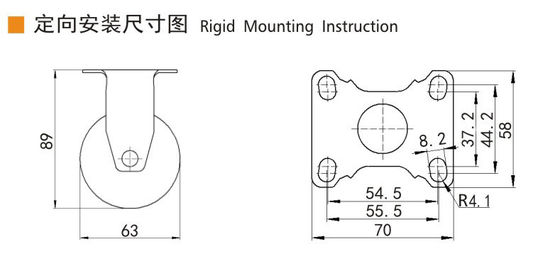

EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type 0

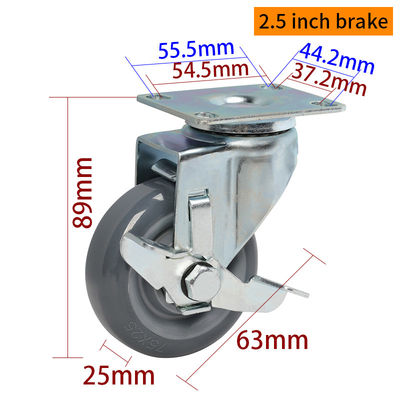

EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type 2

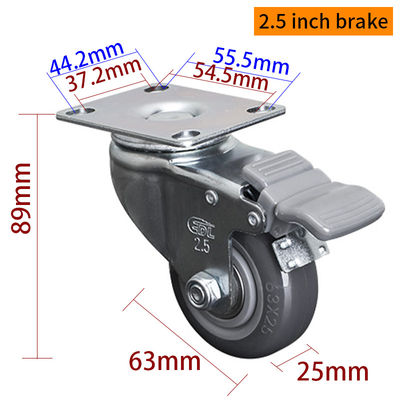

EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type 4

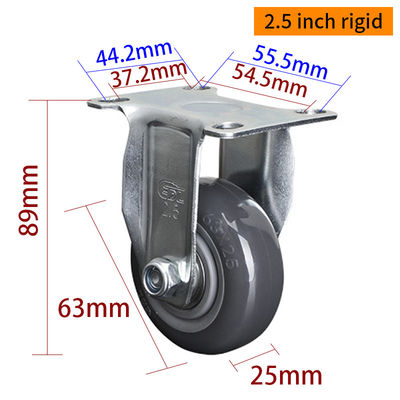

EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type 6

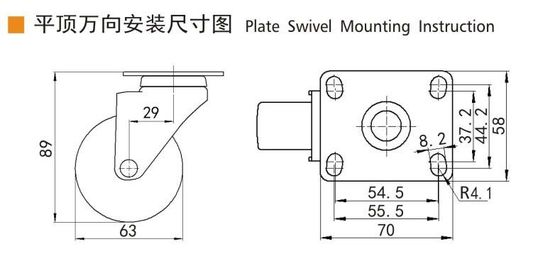

EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type 8

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable

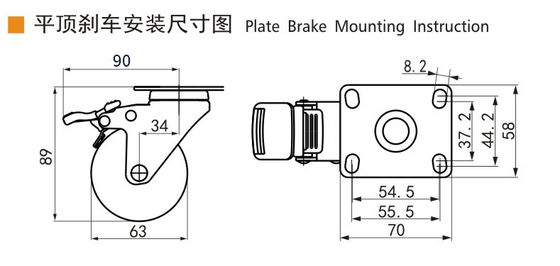

EDL Light Duty 2.5inch 80kg Plate TPU Caster by Rigid, Swivel and Brake type 9
