| Guarantee: | One Year Under Normal Condition Use | Material: | PP Caster Wheels |
|---|---|---|---|
| Color: | White Or Black | Diameter: | 100mm |
| Wheel Width: | 32mm | Plate Type: | Stem Casters |
| Bearing: | Double Ball | Surface Treatment: | Zinc Plated Steel |
| High Light: | 100mm Stem Mount Casters,Zinc Plated Stem Mount Casters |
||
Technical parameters
| Picture | Item No. | Wheel material | Wheel diameter | Wheel width | Load capacity | Setting height | Threaded stem size | Bracket thickness |
 |
OY2-PP75-TWZ | PP | 75mm | 32mm | 90kg | 105mm | 12*25mm | 2.3 |
| OY1-PP100-TWZ | PP | 100mm | 32mm | 100kg | 128mm | 2.3 | ||
| OY1-PP125-TWZ | PP | 125mm | 32mm | 110kg | 149mm | 2.3 |

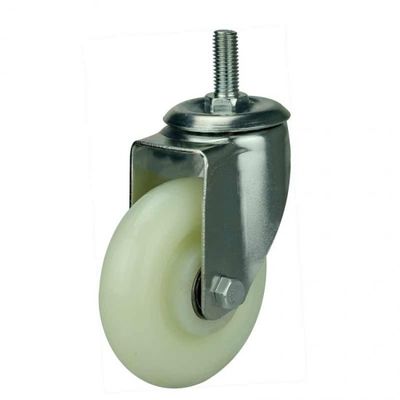

Features :
4 inch diameter with 32mm tread width,hard PP caster to runs smoothly and easily . Perfect for outdoor use ,carpet or rough ground .
Double ball bearing and thick housing to support 100kgs / piece and 4 pcs will load round 270kgs
Galvanized zinc top plate and housing ,anti corrosion and not easy to rust
Description :
Diameter: 4 inch /100mm
Wheel tread width:32mm
Load capacity:100kgs/piece
Total height:130mm
Stem size:12*25mm
Steel bracket thickness:2.3mm
Top plate thickness:3.0mm
Bearing : precision double ball 6001 type
