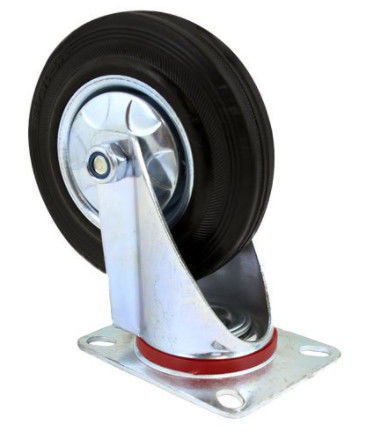

Product Details:
Payment & Shipping Terms:
|
Quality Guarantee: | One Year Under Normal Condition Use | Material: | Rubber Castors |
---|---|---|---|
Wheel Color: | Black | Diameter: | 6 Inch 160mm |
Plate Type: | Swivel Casters | Surface Treatment: | Zinc Plated Steel |
Bearing: | Roller Caster | Load Capacity: | 150kg |
High Light: | 6'' Heavy Duty Trolley Wheels,150kg Load Trolley Wheels |
Elastic rubber caster wheels,rolls smoothly and quietly,to protect floors
Low starting thrust ,rolls easier
Strong steel core
Pressed steel material with zinc plated surface treatment,anti-corrosion and rust protection
Grease seal to hold in lubricant
Precision roller bearing and thick bracket to support heavy load capacity
360 rotate swivel plate
Application :Suitable for carts,hand truck trolley,plastic moving dolly,furnitures, catering equipment,racks,tool box,etc.
Recommended for use on carpet, concrete, cement,tile floor and hardwoode floor
Technical parameters
Picture | Item No. | Wheel material | Wheel diameter | Wheel width | Load capacity | Setting height | Hole spacing | Top plate size | Bracket thickness |
E-R75-SBZ | rubber | 75mm | 23mm | 50kg | 94mm | 62*47mm 56.5*41.5mm |
81*67mm | 2.0 | |
E-R100-SBZ | rubber | 100mm | 30mm | 70kg | 124mm | 80*60mm | 100*80mm | 2.0 | |
E-R125-SBZ | rubber | 125mm | 35mm | 100kg | 150mm | 80*60mm | 100*80mm | 2.0 | |
E-R160-SBZ | rubber | 160mm | 40mm | 140kg | 195mm | 103*74mm | 135*105mm | 2.5 | |
E-R200-SBZ | rubber | 200mm | 50mm | 200kg | 235mm | 103*74mm | 135*105mm | 2.5 | |
E-R250-SBZ | rubber | 250mm | 50mm | 230kg | 280mm | 103*74mm | 135*105mm | 2.5 |
