Product Details:
Payment & Shipping Terms:
|
| Guarantee: | One Year Under Normal Condition Use | Wheel Material: | Polyurethane Casters |
|---|---|---|---|
| Wheel Core: | Cast Iron | Diameter: | 8 Inch 200mm |
| Load Capacity: | 270kgs | Surface Treatment: | Galvanized Zinc |
| High Light: | 4.5mm 200mm Castor Scaffold,4.5mm bracket 270kgs Solid Stem Caster,270kgs 4.5mm 8 Inch Swivel Casters |
||
Technical parameters
| Picture | Item No. | Wheel material | Wheel diameter | Wheel width | Load capacity | Setting height | Solid stem length | Solid stem diameter | Bracket thickness |
 |
S-PU150 | PU | 150mm | 50mm | 250kg | 190mm | 100mm | 35mm | 4.5 |
| S-PU200 | PU | 200mm | 50mm | 270kg | 228mm | 100mm | 35mm | 4.5 |
| Picture | Item No. | Wheel material | Wheel diameter | Wheel width | Load capacity | Setting height | Solid stem length | Solid stem diameter | Bracket thickness |
|
S-PU150 | PU | 150mm | 50mm | 270kg | 190mm | 100mm | 35mm | 5.5 |
| S-PU200 | PU | 200mm | 50mm | 300kg | 228mm | 100mm | 35mm | 5.5 |

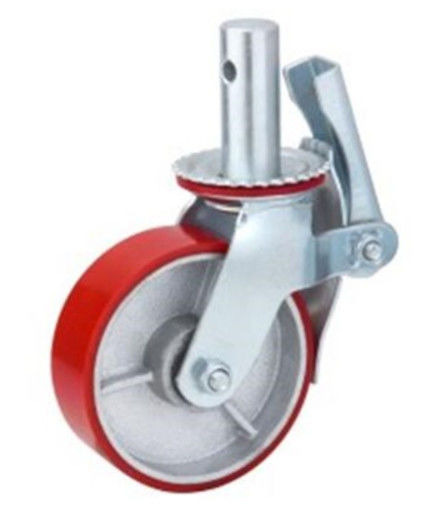

DESCRIPTION: Standard stem scaffold casters with PU wheels are designed for scaffolding frame. 500-600 lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel ,and allow easy locking and repositioning.
FEATURES
• Total lock brake: easy to engage for swivel and wheels
• Double ball raceway swivel head
• Zerks: swivel and hub for easy lubrication
• King bolt: king bolt and nut construction for added strength
• Wheel bearing: roller bearing with drilled hardened steel spanner bushing and plastic side washers
• Finish: galvanized housing to resist corrosion
