Product Details:
Payment & Shipping Terms:
|
Guarantee: | One Year Under Normal Condition Use | Material: | Plastic Wheels |
---|---|---|---|
Color: | Orange | Plate Type: | Swivel Casters |
Diameter: | 3 Inch 75mm | Load Capacity: | 90kg |
Bearing: | Double Ball Bearing | Surface Treatment: | Zinc Plated |
High Light: | 90kg 75mm Ball Bearing Castors,2.3mm orange Ball Bearing Casters,90kgs 75mm 3 inch Castors |

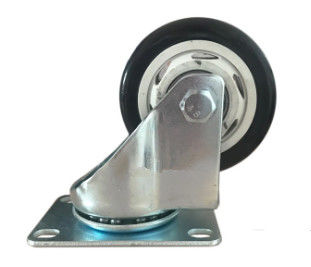

Product name | PVC caster wheels |
Quality warranty | 1 year under normal condition use |
Tread material | PVC wheels ,orange or black color |
Wheel core material | Plastic PP,black color |
Bracket material | pressed steel |
Diameter | 3 inch |
Load capacity | 90kg |
Tread width | 32mm |
Installation height | 105mm |
Mounting size | 75*45mm |
Top plate size | 95*65mm |
Bracket thickness | thick 2.3mm |
Application |
office equipent,laundry ,medium duty equipment ,dolly ,furnitures and racks |
Features :
1 PVC caster wheel rolls smoothly and quietly, no damage to the floors
2 Galvanized zinc steel swivel top plate ,anti-corrosion and not easy to rust
3 Double ball bearing for increased capacity
4 Plate mounted installation requires 4 screws (not included )
5 The wheel has strong anti-aging capability and long service life
Application :cart,hand truck trolley,moving dolly,furnitures, dining cars, catering equipment,food service equipment,racks and so on
Technical parameters
Picture | Item No. | Wheel material | Wheel diameter | Wheel width | Load capacity | Setting height | Hole spacing | Top plate size | Bracket thickness |
OY2-PVC75-SOZ | PVC | 75mm | 32mm | 90kg | 105mm | 75*45mm | 96*65mm | 2.3 | |
OY2-PVC100-SOZ | PVC | 100mm | 32mm | 100kg | 128mm | 75*45mm | 96*65mm | 2.3 | |
OY2-PVC125-SOZ | PVC | 125mm | 32mm | 110kg | 149mm | 75*45mm | 96*65mm | 2.3 |
