5 Inch Medical Caster Wheels TPU Tread 130kg Load

Name: 5 Inch Medical Caster Wheels TPU Tread 130kg Load
Brand: Guangzhou EDL Casters Co.,Ltd.
SKU: E575-77
Availability: InStock

Brand Name:	EDL
Model Number:	E575-77
MOQ:	1pcs
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	30,000pcs/day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, RoHS

Name:

Light Duty Medical Caster Wheels

Wheel Diameter:

5inch(125mm)

Tread Material:

TPU

Dynamic Load:

130kg

Standard Threaded:

M16X25

Mounting Height:

170mm

Frame Material:

Cold-Rolled Plate

Bracket Thickness:

2.5mm

Surface Material:

ABS

Bracket Width:

41mm

Wheel Width:

31mm

Bearing:

Single Ball Bearing

Tread Color:

Grey

Core Material:

Applicable Temperature:

-20℃～80℃

Tread Hardness:

95A

Packaging Details:

Carton

Supply Ability:

30,000pcs/day

Highlight:

medical caster TPU wheels 5 inch

medium duty medical caster with brake

medical caster swivel type 130kg

Product Description

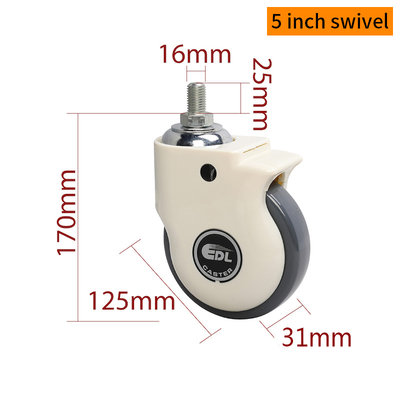

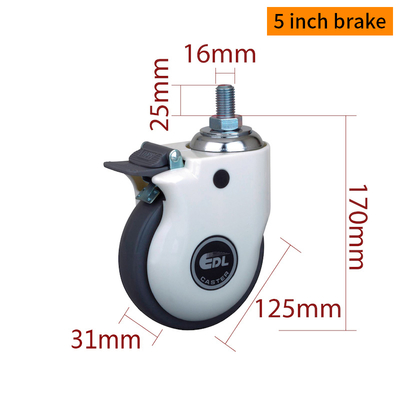

EDL Medium Duty Medical Caster TPU Wheels 5 Inch 130Kg by Swivel and Brake type E575-77

Product Specifications

Attribute	Value
Name	Light Duty Medical Caster Wheels
Wheel Diameter	5inch(125mm)
Tread Material	TPU
Dynamic Load	130kg
Standard Threaded	M16X25
Mounting Height	170mm
Frame Material	Cold-Rolled Plate
Bracket Thickness	2.5mm
Surface Material	ABS
Bracket Width	41mm
Wheel width	31mm
Bearing	Single Ball Bearing
Tread Color	Grey
Core Material	PP
Applicable Temperature	-20℃～80℃
Tread Hardness	95A

Product Description

The EDL Medium Duty Medical Caster E575-77 is built for heavy-duty healthcare and laboratory applications that require both strength and precision movement. Fitted with 5-inch TPU wheels, it ensures smooth, low-noise operation, excellent wear resistance, and reliable floor protection.

With a 130 kg load capacity, it supports demanding equipment such as hospital beds, large medical carts, patient transport trolleys, anesthesia machines, and imaging devices. The ABS outer housing offers a strong yet lightweight frame, resisting impacts while maintaining a clean, professional appearance. A threaded stem makes installation secure and straightforward.

Available in swivel for agile 360° maneuverability or brake type for steady, fixed positioning, it's ideal for hospitals, surgical centers, laboratories, and rehabilitation facilities. Designed for comfort, durability, and control, this caster keeps equipment mobile and operations efficient in busy medical environments.

Technical Specifications

Wheel item no.	Size	Wheel Diameter	Wheel Width	Bracket Width	Load Capacity	Core	Tread	Bearing	Applicable temperature	Hardness
E575-77	5"	125mm	31mm	41mm	130Kg	PP	TPU	Single ball bearing	-20℃～80℃	95A

Frequently Asked Questions

Q: Are you manufacturer or trading company?

A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit?

A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?

A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?

A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?

A: Yes, sample is fine at any time, negotiable.
